Weir oil skimmer

Brief description

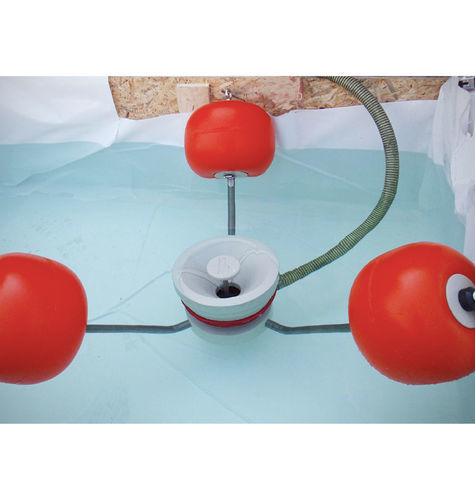

The Zenit Ambiente WS weir skimmer is suitable for tank and marine applications, at fixed or variable water levels, for recovery of floating oily and foamy contaminants. It features a central polypropylene (PP) weir mouth that automatically follows the free surface via a bellows system, ensuring effective recovery even with a moving surface. The unit is kept afloat by three adjustable floats. The pump suction is connected to the weir mouth on the submerged side.

Description
The skimmer collects any material floating on the free surface, whether oily or non‑oily, including small solid debris. It is not selective: if no pollutant is present it will intake water. Operator supervision is recommended to minimize the volume of water recovered.

System consists of

• 3‑float weir mouth (PP)
• Flexible suction and discharge tubing, spiral PVC, Ø30 mm
• Air‑operated double‑diaphragm pump
• Pneumatic control panel

Additional information (table)
RECOVERY FLOW RATE: 0 – 5 m3/h
DIMENSIONS: 970×875 mm; H = 450 mm
WEIGHT: 9.2 Kg
POWER / SUPPLY: Compressed air max 7 bar
NUMBER OF FLOATS: 3
FLOAT MATERIAL: PP
WEIR MOUTH MATERIAL: PP
SUCTION TUBING MATERIAL: Spiral PVC
SUCTION TUBE DIAMETER: Ø30 mm
PUMP RECOVERY CAPACITY: 5 m3/h (max)
PUMP HEAD / PRESSURE: 7 bar (max)
PUMP MATERIALS: Pump body: Al; Diaphragms: NBR
AIR CONNECTION TO CONTROL PANEL: Female thread G1/2"

Technical features / specifications

• Applications: tank and marine, fixed or variable level
• Central weir mouth in polypropylene (PP)
• Buoyancy: 3 adjustable floats (PP)
• Dimensions: 970×875 mm; height 450 mm
• Weight: 9.2 Kg
• Recovery flow rate: 0 – 5 m3/h
• Pump: air‑operated double‑diaphragm; capacity 5 m3/h (max); head 7 bar (max)
• Pump materials: body in aluminium; diaphragms in NBR
• Tubing: spiral PVC Ø30 mm
• Pump air supply: compressed air max 7 bar; air inlet: female thread G1/2"
