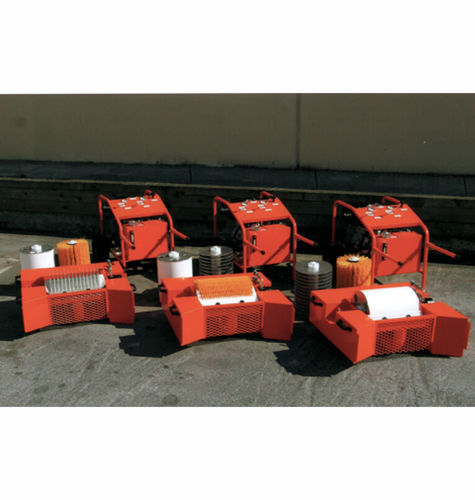

Oleophilic type oil skimmer 1218/1

rotary drumdiscbrush

Product overview
The MULTI SKIMMER is a highly effective oleophilic separator for removing oil floating on the surface. Use wherever there is oil to be removed from the water surface. Applied oleophilic technology removes approximately 98% pure oil. Small modules ideal for use in plants (oil-water separators in A.P.I.-type tanks) with larger modules ideal for recovery operations in case of accidental oil spills. It can be used with a wide range of oil viscosities, from light oils to heavy crudes.

Features and benefits

• Standard disc skimming module with optional interchangeable brush and/or drum modules.
• Modular design that minimizes costs and allows optimal recovery for a wide variety of polluting products.
• Separate or on-board (detachable) pump for effective pumping of viscous fluids and maximum versatility.
• Sturdy, all-aluminum structure coated with powder paint for high visibility.
• Various sizes and capacities available.
• Hydraulic transmission with choice of electric batteries, diesel or gasoline engine.

Additional information (product attributes)
Type of skimmer: Brush Drum Disk
Recovery: >12 m3/h >10 m3/h >11 m3/h
Residual water: Less than 2%
Viscosity range: Variable
Length, width, height: 870x1020x460 mm
Weight: 41 Kg
Finishes: All made of "marinized" Aluminum and stainless steel, coating with paint in orange powder
Brush size: 300×450 mm

Technical characteristics / specifications

• Type of skimmer: Brush, Drum, Disk
• Oil recovery rate: >12 m3/h; >10 m3/h; >11 m3/h (depending on module/configuration)
• Residual water: < 2%
• Viscosity range: Variable — suitable for light oils to heavy crudes
• Dimensions (L×W×H): 870×1020×460 mm
• Weight: 41 Kg
• Construction/Finishes: Marinized aluminum and stainless steel with orange powder coating
• Brush size: 300×450 mm
• Pump: Separate or on-board (detachable) pump option for viscous fluids
• Transmission: Hydraulic; power options include electric batteries, diesel or gasoline engines
