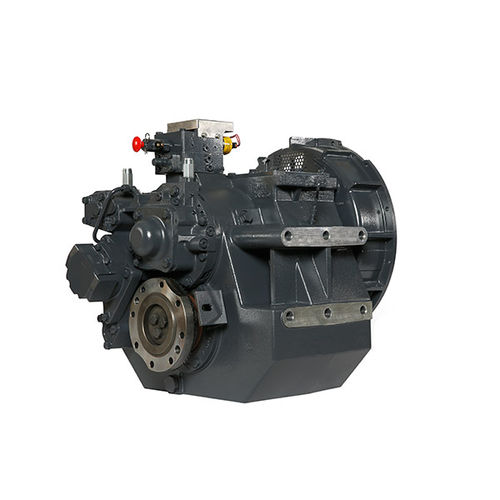

Ship reduction gearbox MGX-5146SC
engine

ship reduction gearbox
ship reduction gearbox
ship reduction gearbox
Add to favorites
Compare this product


Characteristics

Application domain
for ships
Applications
engine
Power

Max.: 1,142 kW
(1,552.7 hp)

Min.: 537 kW
(730.1 hp)

Rotational speed

1,800 rpm, 2,100 rpm, 2,300 rpm
(11,310 rad.min-1, 13,195 rad.min-1, 14,451 rad.min-1)

Description

Standard Equipment Vertical offset, aluminum housing Electric GP-valve with manual override EC050 Profile module – interface for engagement signals Oil strainer and oil filter Options SAE J617 housing no. 1 SAE J617 housing no. 0 Flexible coupling for 14” flywheel (SAE J620 size 355) Flexible coupling for 18” flywheel (SAE J620 size 460) Input flange for freestanding installation Mechanical control valve EC050 E-Troll module – interface for engagement & trolling signals Harness with single point interface to Twin Disc EC300 control system Oil cooler with thermostatic bypass valve Companion flange/ bolts set Monitoring devices to customer’s specification Mounting brackets Live PTO: SAE J744 size 82-2, 16-4 (SAE “A”, 2-bolt, max. 58 Nm) SAE J744 size 101-2, 22-4 (SAE “B”, 2-bolt, max. 197 Nm) SAE J744 size 101-2, 25-4 (SAE “B-B”, 2-bolt, max. 337 Nm) SAE J744 size 127-4, 32-4 (SAE “C”, 4-bolt, max. 592 Nm) Hydraulic clutchable PTO: SAE J744 size 127-4, 32-4 (SAE “C”, 4-bolt, max. 600 Nm)

Catalogs

No catalogs are available for this product.

See all of Twin Disc‘s catalogs
