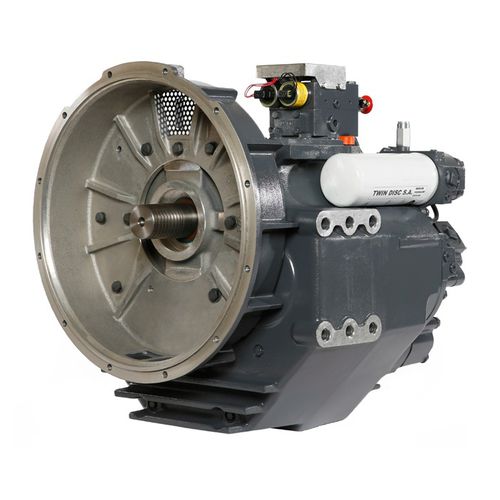

Ship reduction gearbox MGX-5136RV
engine

ship reduction gearbox
ship reduction gearbox
ship reduction gearbox
Add to favorites
Compare this product


Characteristics

Application domain
for ships
Applications
engine
Power

Max.: 895 kW
(1,216.9 hp)

Min.: 445 kW
(605 hp)

Rotational speed

1,800 rpm, 2,100 rpm, 2,300 rpm
(11,310 rad.min-1, 13,195 rad.min-1, 14,451 rad.min-1)

Description

Standard Equipment Remote V-drive, aluminum housing 10° down angle on output shaft Input flange Electric GP-valve with manual override EC050 Profile module – interface for engagement signals Oil strainer and oil filter Options Mechanical control valve EC050 E-Troll module – interface for engagement & trolling signals Harness with single point interface to Twin Disc EC300 control system Oil cooler with thermostatic bypass valve Companion flange/ bolts set Monitoring devices to customer’s specification Mounting brackets Live PTO: SAE J744 size 127-4, 32-4 (SAE “C”, 4-bolt, max. 592 Nm) Hydraulic clutchable PTO: SAE J744 size 127-4, 32-4 (SAE “C”, 4-bolt, max. 600 Nm)
