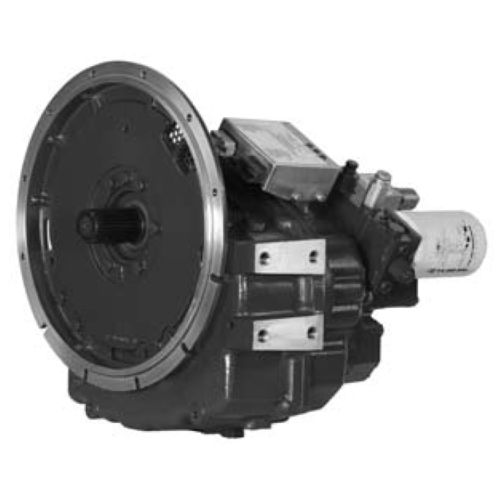

Ship reduction gearbox MGX-5065A
engine

ship reduction gearbox
ship reduction gearbox
ship reduction gearbox
Add to favorites
Compare this product


Characteristics

Application domain
for ships
Applications
engine
Power

Max.: 425 kW
(577.8 hp)

Min.: 216 kW
(293.7 hp)

Rotational speed

1,800 rpm, 2,100 rpm, 2,300 rpm, 2,500 rpm
(11,310 rad.min-1, 13,195 rad.min-1, 14,451 rad.min-1, 15,708 rad.min-1)

Description

Standard Equipment Vertical offset, aluminum housing 7° down angle on output shaft Electric GP-valve with manual override EC050 Profile module – interface for engagement signals Oil strainer and oil filter Options SAE J617 housing no. 1 SAE J617 housing no. 2 SAE J617 housing no. 3 Flexible coupling for 14” flywheel (SAE J620 size 355) Flexible coupling for 11.5” flywheel (SAE J620 size 290) Input flange for freestanding installation EC050 E-Troll module – interface for engagement & trolling signals Harness with single point interface to Twin Disc EC300 control system Oil cooler with thermostatic bypass valve Companion flange/ bolts set Monitoring devices to customer’s specification Mounting brackets Live PTO: SAE J744 size 82-2, 16-4 (SAE “A”, 2-bolt, max. 58 Nm) SAE J744 size 101-2/4, 22-4 (SAE “B”, 2/4-bolt, max. 197 Nm) SAE J744 size 101-2/4, 25-4 (SAE “B-B”, 2/4-bolt, max. 337 Nm)

Catalogs

MGX-5065A
MGX-5065A
2 Pages
