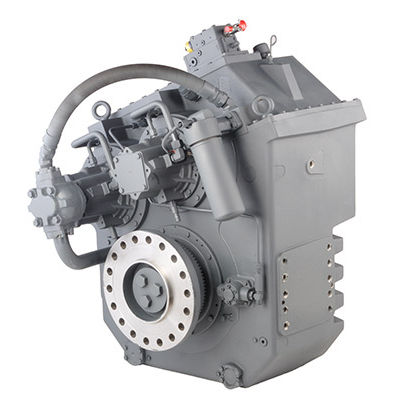

Ship reduction gearbox MGX-61500SC
engine

ship reduction gearbox
ship reduction gearbox
Add to favorites
Compare this product


Characteristics

Application domain
for ships
Applications
engine
Power

Max.: 2,340 kW
(3,181.5 hp)

Min.: 1,560 kW
(2,121 hp)

Rotational speed

1,200 rpm, 1,600 rpm, 1,800 rpm
(7,540 rad.min-1, 10,053 rad.min-1, 11,310 rad.min-1)

Description

Standard Equipment Vertical offset, aluminum housing Electric GP-valve with manual override EC050 Profile module – interface for engagement signals Mounted oil cooler for raw water cooling Oil strainer and oil filter Options SAE J617 housing no. 00 Flexible coupling for 21” flywheel (SAE J620 size 530) Input flange for freestanding installation EC050 E-Troll module – interface for engagement & trolling signals Harness with single point interface to Twin Disc EC300 control system Oil cooler for fresh water cooling Output shaft driven trailing pump Companion flange/ bolts set Monitoring devices to customer’s specification Mounting brackets Live PTO: SAE J744 size 101-2, 22-4 (SAE “B”, 2-bolt), max. 209 Nm SAE J744 size 127-4, 32-4 (SAE “C”, 4-bolt, max. 592 Nm) SAE J744 size 127-4, 38-4 (SAE “C-C”, 4-bolt, max. 1187 Nm) Hydraulic clutchable PTO: SAE J744 size 127-4, 32-4 (SAE “C”, 4-bolt, max. 592 Nm) SAE J744 size 127-4, 38-4 (SAE “C-C”, 4-bolt, max. 1186 Nm)
