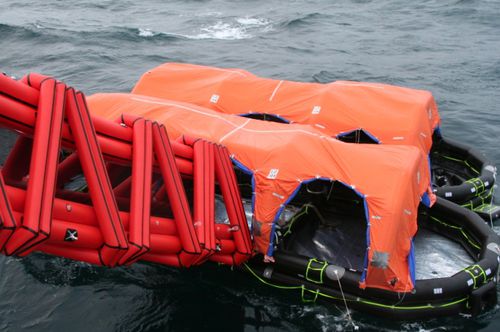

Ship marine evacuation slide MIS 12M

SOLAS canopied liferafts SOLAS A or B pack 100 persons or SOLAS B pack 150 persons liferafts Regular or self-righting (TO or TO SR liferafts) 1 raft packed with slide for quick operation Open Reversible Liferafts (ORIL/IBA) IBA or HSC packs 100 or 151 persons capacity 2 ORILs can be packed in one container with slide (very easy to use evacuation system) General Details: Slide lengths to cover vessel freeboards between 3.8m and 12.5m 731 persons evacuated in 30 min for SOLAS passenger ship requirements 397 persons evacuated in 17 min 40sec for High Speed Code (HSC) requirements Push button system deployment and detachment of slide from raft 150 persons liferaft translates to very low crewing requirements Simple removal system for rapid, easy servicing Additional liferafts stored close to slide location on separate cradles SurvitecZodiac liferafts equipped with patented Venturi inflation system (fewer gas cylinders & weight saving) Twin tracks that allow users to descend at a comfortable safe rate Easy to use for people of all ages, sizes and abilities System Specifications: System including liferaft/ORIL in a cylindrical container + slide + aluminum cradle + cover Manual and remote release system (control panel also manages the additional liferafts) Float-free device - automatically activated in case of ship sinking Bowsing arrangement of the primary liferaft comprising: bowsing lines, winch, rope clutches, blocks and split tubes for bowsing lines SYSTEM TYPES Closed deck installations: MES cradle support interface Aluminum hull door MES premises with inboard side door Open deck installations: MES cradle support interface Ultra light weight fabric housing
