boating engine / outboard / gasoline / 4-stroke

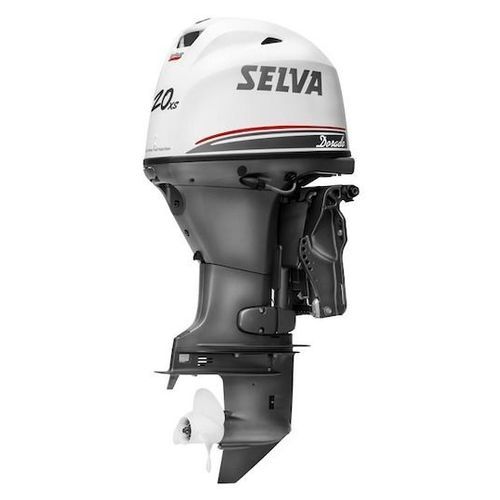

DORADO 20XS E.F.I.

• Market:

  boating

• Type:

  outboard

• Power source:

  gasoline

• Other characteristics:

  4-stroke

• Power:

  20 ch (20 hp)

The electronic injection is the distinctive element of this engine designed to improve the performance of the hull to which it is combined and to satisfy, even more, every speed and reduced fuel consumption requirement. It can increase pickup power achieving surprising performance with particularly low emissions.

TECHNICAL FEATURES AND EQUIPMENT
Bore x Stroke (mm)65 x 75
Nr. cylinders4
Number of valvesIntake: 4 Exhaust: 4
Throat DiameterIntake: 32 Exhaust: 26,7
InductionElectronic Fuel Injection MPI
FuelUnleaded petrol
LubricationWet sump
IgnitionT.C.I. (Transister Controlled Ignition)
Ignition timingElectronic
Spark plugNGK DPR6EB-9
StartingElectric
Alternator12V/200W
CoolingWater cooled with pump-forced circulation
ExhaustUnder Water throught propeller
Trim adjustmentPower Trim Tilt
Direction reversalMechanical A-F-R
Transmission ratio13/24
Propeller type3-bladed with built-in spring drive
Weight basic version (Kg)112,5
