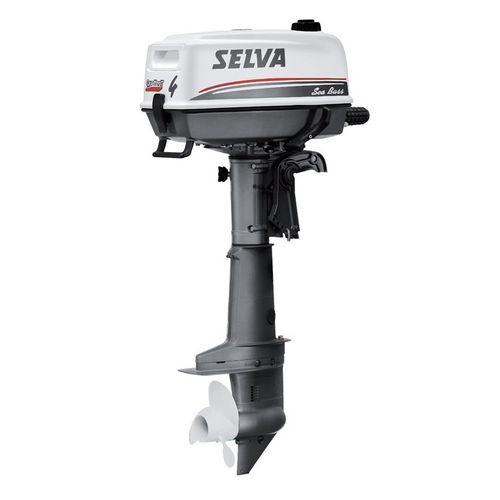

Outboard engine SEA BASS 4
gasolineboatingwater-cooled

outboard engine
outboard engine
Add to favorites
Compare this product


Characteristics

Type
outboard
Power source
gasoline
Market
boating
Cooling system
water-cooled
Ignition
manual start
Other characteristics
4-stroke
Power

4 ch
(4 hp)

Displacement

118 cm³
(4 US fl oz)

Number of cylinders

1 unit

Engine speed

5,000 rpm, 5,500 rpm
(31,416 rad.min-1, 34,558 rad.min-1)

Bore

56 mm
(2.2 in)

Stroke

48 mm
(1.9 in)

Weight

23 kg
(51 lb)

Description

Compactness, lightness and excellent performance are the characteristics of this new outboard motor 2012. The automatic lubricating oil injection system gives this 4 stroke an especially convenient storage. The low consumption and convenience in transport make it the inseparable companion for many relaxing and fun moments. Technical features and equipment Bore x Stroke (mm) - 56 x 48 N° Cylinders - 1 Induction - 1 carburettor Starting - Manual Fuel - Petrol (for specifications see the user manual) Fuel tank (L) - Integrated 1,6 with connection for external tank Lubrication - Automatic oil injection into fuel Ignition - C.D.I. Digital Ignition timing - Electronic Starting - Manual Alternator - Optional 12V/70W with regulator Cooling - Water cooled with pump-forced circulation Exhaust - Underwater through propeller Steering system - Bar with twist grip throttle control and steering friction adjustment Trim adjustment - Manual (4 pos) with trim for navigation in shallow waters Direction reversal - Mechanical A-F-R + 360° shaft rotation Transmission ratio - 13/30 Available shaft versions - C. - L. Standard propeller type - 3-bladed with built-in spring drive Weight basic version (Kg) - 23
