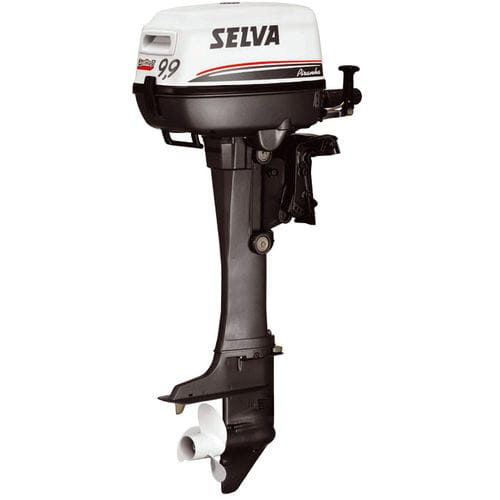

Outboard engine PIRANHA 9,9
gasolineboatingprofessional vessel

outboard engine
outboard engine
Add to favorites
Compare this product


Characteristics

Type
outboard
Power source
gasoline
Market
boating, professional vessel
Cooling system
water-cooled
Other characteristics
4-stroke
Power

9.9 ch (9.9 hp)

Number of cylinders

1 unit

Displacement

181 cm³ (6 US fl oz)

Engine speed

5,500 rpm, 6,000 rpm (34,558 rad.min-1)

Bore

66 mm (2.6 in)

Weight

31 kg (68 lb)

Description

This single cylinder 181cc is available with power starting from 9.9 Hp. Compact, sturdy, easy to handle, reduced fuel consumption, other features include its utterly enviable performance and its weight of only 30Kg - the lightest 4 stroke engine on the market. Technical features and equipment Bore x Stroke (mm) - 66 x 53 N° Cylinders - 1 Induction - 1 carburettor Starting - Manual or Electrical Fuel - Petrol (for specifications see the user manual) Fuel tank (L) - Separate 12 Lubrication - Forced with mechanical lobe-pump Ignition - C.D.I. Digital Ignition timing - Electronic Starting - Manual or Electrical Alternator - Optional 12V/70W with rectifier on Manual start versionStandard 12V/70W with rectifier on Electric start version Cooling - Water cooled with pump-forced circulation Exhaust - Underwater through propeller Steering system - Bar with twist grip throttle control and steering friction adjustment or remote with remote control box Type of remote control box provided (for the version with remote control box) - Single lever with safety switch Trim adjustment - Manual (4 pos)with trim for navigation in shallow waters Direction reversal - Mechanical A-F-R Transmission Ratio - 13/27 Available shaft versions - C. - L. Standard propeller type - 3-bladed with built-in spring drive Weight basic version (kg.) - 30,5
