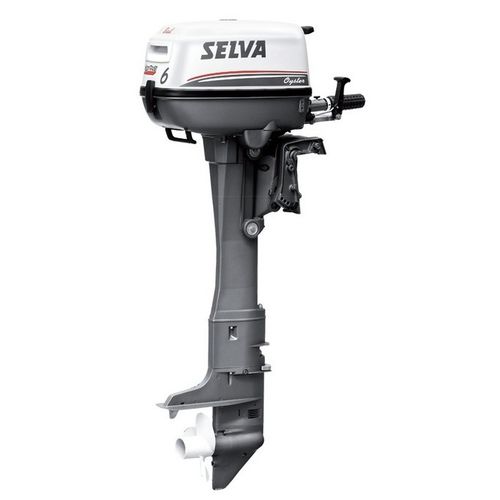

Outboard engine OYSTER BIG FOOT SAIL 6
auxiliarygasolineboating

outboard engine
outboard engine
Add to favorites
Compare this product


Characteristics

Type
outboard, auxiliary
Power source
gasoline
Market
boating
Cooling system
water-cooled
Ignition
manual start
Other characteristics
4-stroke
Power

6 ch
(6 hp)

Displacement

135 cm³
(5 US fl oz)

Number of cylinders

1 unit

Engine speed

5,500 rpm, 6,000 rpm
(34,558 rad.min-1, 37,699 rad.min-1)

Bore

57 mm
(2.2 in)

Weight

32 kg
(71 lb)

Description

Designed mainly to be used as an auxiliary motor on sailboats, this new 2012 model adds to strenght and compactness, typical of the model, its high draft given by the Extra Long shaft. Technical features and equipment Bore x Stroke (mm) - 57 x 53 N° Cylinders - 1 Induction - 1 carburettor Starting - Manual or Electrical Fuel - Petrol (for specifications see the user manual) Fuel tank (L) - Separate 12 Lubrication - Forced with mechanical lobe-pump Ignition - C.D.I. Digital Ignition timing - Electronic Starting - Manual or Electric Alternator - Optional 12V/70W with rectifier on Manual start versionStandard 12V/70W with rectifier on Electric start version Cooling - Water cooled with pump-forced circulation Exhaust - Underwater through propeller Steering system - Bar with twist grip throttle control and steering friction adjustment or remote with remote control box Type of remote control box provided (for the version with remote control box) - Single lever with safety switch Trim adjustment - Manual (4 pos)with trim for navigation in shallow waters Direction reversal - Mechanical A-F-R Transmission Ratio - 13/27 Available shaft versions - XL. Standard propeller type - 3-bladed with built-in spring drive Weight basic version (kg.) - 32
