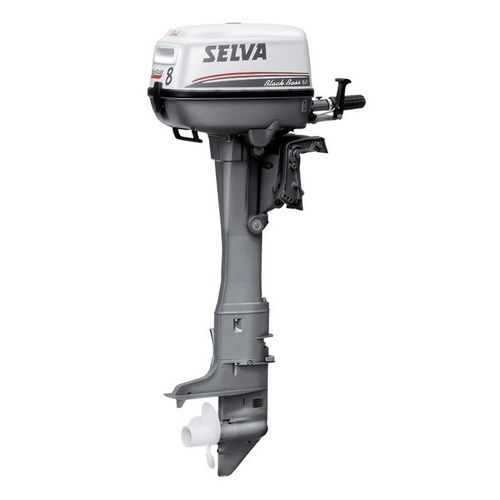

Long-shaft engine BLACK BASS BIG FOOT SAIL 8
gasolineboating4-stroke

long-shaft engine
long-shaft engine
Add to favorites
Compare this product

Characteristics

Type
long-shaft
Power source
gasoline
Market
boating
Other characteristics
4-stroke
Power

8 ch (8 hp)

Description

It combines light weight and compactness of a typical single cylinder to the possibility of installation on boats with higher drafts. Its Extra Long shaft and the possibility of a remote control makes it the ideal companion for applications which require easy installation and operating capabilities such as sailboats. TECHNICAL FEATURES AND EQUIPMENT Bore x Stroke (mm)63 x 53 N° Cylinders1 Induction1 carburettor StartingManual or Electrical FuelPetrol (for specifications see the user manual) Fuel tank (L)Separate 12 LubricationForced with mechanical lobe-pump IgnitionC.D.I. Digital Ignition timingElectronic StartingManual or Electrical AlternatorOptional 12V/70W with rectifier on Manual start versionStandard 12V/70W with rectifier on Electric start version CoolingWater cooled with pump-forced circulation ExhaustUnderwater through propeller Steering systemBar with twist grip throttle control and steering friction adjustment or remote with remote control box Type of remote control box provided (for the version with remote control box)Single lever with safety switch Trim adjustmentManual (4 pos)with trim for navigation in shallow waters Direction reversalMechanical A-F-R Transmission Ratio13/27 Available shaft versionsXL. Standard propeller type3-bladed with built-in spring drive Weight basic version (kg.)32
