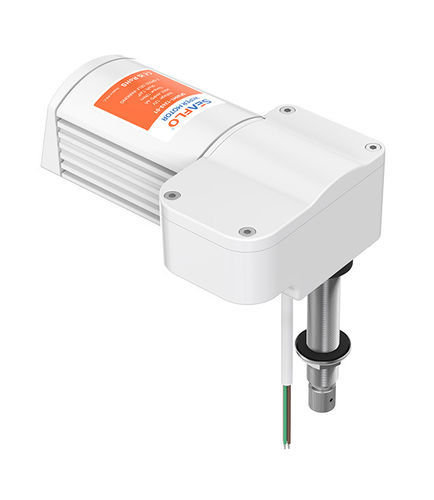

Boat windshield wiper motor SFWM1-1243-01

for boatmarine

Product overview
01 Series wiper motor with 12 Nm torque designed for marine use. Stepless sweep angle 45° - 110°, 2-speed operation, self-parking and IP65 protection deliver consistent wiping performance for vessels. Stainless steel driveshaft and EMC protection ensure durability and compatibility with metal, plastic and wooden hulls. Powers arm/blade combinations up to 610 mm / 560 mm.

Model details

• Model: SFWM1-1243-01
• Voltage: 12 V
• Max Current: 4 A

MORE FEATURES & BENEFITS

• 12 Nm torque
• Stepless sweep angle: 45 - 110°
• 2-speed operation
• Self-parking
• IP65 rated
• Parking position adjustable to the left or right side
• Driveshaft in stainless steel
• EMC protected
• Insulated ground for metal, plastic, and wooden boats
• Powers arm/blade combinations up to 610 mm / 560 mm

STANDARD CONFIGURATIONS
S FWM1-1243-01 | 4 A | 12 V | 12 Nm | 43 mm / 1.69 in | 45° - 110° | 55 sweeps/min | 35 sweeps/min | 5 A
S FWM2-1243-01 | 2 A | 24 V | 12 Nm | 43 mm / 1.69 in | 45° - 110° | 55 sweeps/min | 35 sweeps/min | 3 A
S FWM1-1268-01 | 4 A | 12 V | 12 Nm | 68 mm / 2.68 in | 45° - 110° | 55 sweeps/min | 35 sweeps/min | 5 A
S FWM2-1268-01 | 2 A | 24 V | 12 Nm | 68 mm / 2.68 in | 45° - 110° | 55 sweeps/min | 35 sweeps/min | 3 A
S FWM1-1294-01 | 4 A | 12 V | 12 Nm | 94 mm / 3.70 in | 45° - 110° | 55 sweeps/min | 35 sweeps/min | 5 A
S FWM2-1294-01 | 2 A | 24 V | 12 Nm | 94 mm / 3.70 in | 45° - 110° | 55 sweeps/min | 35 sweeps/min | 3 A

Dimension & installation
Dimension and installation diagrams are provided for arm and shaft measurements and mounting. To change wiping angle or parking position: remove gearbox cover, loosen hex socket screws, move arm to desired end position, tighten screws, set parking to Left or Right, run wiper to parking position and reinstall gearbox cover. If sweep is too large reduce sweep by repeating adjustment; if sweep is offset, remove and reposition arm to center the sweep range.

Specifications

• Series: 01 Series
• Model example: SFWM1-1243-01
• Torque: 12 Nm
• Sweep angle: stepless 45° - 110°
• Voltage options: 12 V (SFWM1 variants) and 24 V (SFWM2 variants)
• Max current (example SFWM1-1243-01): 4 A
• Typical speeds: High 55 sweeps/min, Low 35 sweeps/min
• Drive shaft: stainless steel (shaft diameters 43 mm, 68 mm, 94 mm depending on model)
• Protection rating: IP65
• Features: 2-speed, self-parking, parking position selectable left/right, EMC protected, insulated ground suitable for metal, plastic and wooden boats
• Arm/blade compatibility: up to 610 mm / 560 mm
• Recommended fuse: 5 A for 12 V models, 3 A for 24 V models
