Boat windshield wiper motor 01 Series Wiper Motor

marine

Overview

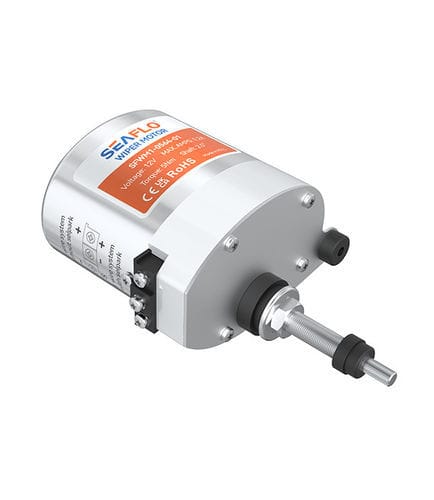

01 Series marine wiper motor for vessel applications. Adjustable sweep angles (90° or 110°) and selectable self-parking to right or left. Stainless steel driveshaft with metal housing. Supports multiple wiper arm and blade combinations; compatible with arm/blade lengths up to 380 mm / 405 mm. Available in 12 V and 24 V versions for marine electrical systems.

Features & Benefits

• 5 Nm torque
• Selectable sweep angles: 90° or 110°
• Self-parking configurable to right or left
• Stainless steel driveshaft and metal housing for corrosion resistance
• Compatible with multiple arm and blade combinations
• Drives arm/blade combinations up to 380 mm / 405 mm

Wiring Options

• 2-wire system without self-park
• 3-wire system with self-park

Changing the Wiping Angle

• Remove the four screws at the bottom of the motor.
• Move the transmission plate to the hole for the desired angle (90° or 110°).
• Reinstall and tighten the screws securely.

Changing Parking Position

• Remove the screws from both sides of the motor.
• Remove the motor cover.
• Detach the angle plate assembly.
• Rotate the angle plate assembly 180°.
• Reinstall the angle plate assembly.
• Reattach the motor cover and tighten the side screws.

Standard Configurations
Model | Max Current | Voltage | Torque | Shaft | Sweep Angles | Sweep Speed | Fuse
SFWM1-0564-01 | 1.2 A | 12 V | 5 Nm | 64 mm / 2.5" | 90°, 110° | 40 sweeps/min | 3 A
SFWM2-0564-01 | 0.6 A | 24 V | 5 Nm | 64 mm / 2.5" | 90°, 110° | 40 sweeps/min | 2 A

Installation & Dimensions
Factory preset to left parking position with a 90° sweep angle. Refer to the supplied installation diagrams and dimension drawings for mounting orientation and clearances.

Technical specifications

• Model (examples): SFWM1-0564-01 (12 V) and SFWM2-0564-01 (24 V)
• Voltage: 12 V (SFWM1), 24 V (SFWM2)
• Max current: 1.2 A (SFWM1), 0.6 A (SFWM2)
• Torque: 5 Nm
• Shaft length: 64 mm (2.5")
• Sweep angles: 90°, 110° (adjustable)
• Sweep speed: 40 sweeps/min
• Fuse: 3 A (12 V model), 2 A (24 V model)
• Supports arm/blade combinations up to 380 mm / 405 mm
• Wiring: 2-wire (no self-park) or 3-wire (with self-park)
