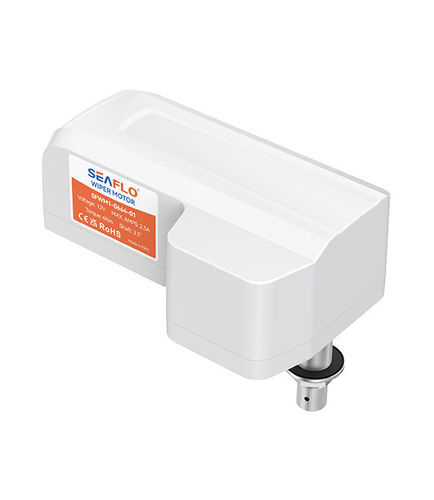

Sailboat windshield wiper motor SFWM1-0664-01

boatfor motor boatsfor yacht

Short description
Marine wiper motor for vessels, available in 12 V and 24 V versions. 6 Nm torque with adjustable sweep angles and selectable left/right self-parking for reliable wiping performance in marine environments.

Model & Electrical
Model: SFWM1-0664-01 (12 V), SFWM2-0664-01 (24 V)
Max Current: 2.5 A (12 V), 1.2 A (24 V)
Voltage: 12 V / 24 V

Overview
01 Series Wiper Motor provides adjustable sweep angles (50°, 65°, 80°, 110°) and selectable self-parking to left or right. The driveshaft is stainless steel with an anti-rotation design and the housing is made of UV- and high-temperature-resistant thermoplastic. Designed to power arm/blade combinations up to 440 mm / 355 mm, the unit is suited to a wide range of vessel types and marine conditions.

FEATURES & BENEFITS

• 6 Nm torque for effective wiping
• Adjustable sweep angles: 50°, 65°, 80°, 110°
• Selectable self-parking: left or right
• Stainless steel driveshaft with anti-rotation design
• UV- and high-temperature-resistant thermoplastic housing
• Drives arm/blade combinations up to 440 mm / 355 mm

STANDARD CONFIGURATIONS
SFWM1-0664-01 | 2.5 A | 12 V | 6 Nm | 64 mm / 2.5" | 50°, 65°, 80°, 110° | 45 sweeps/min | Fuse: 5 A
SFWM2-0664-01 | 1.2 A | 24 V | 6 Nm | 64 mm / 2.5" | 50°, 65°, 80°, 110° | 45 sweeps/min | Fuse: 3 A

Dimension & Installation
Dimension and installation diagrams, plus adjustment illustrations, are provided in the product documentation and technical drawings.

Adjusting the Wiper Angle

• Optional angles: 50°, 65°, 80°, 110°.
• Remove the circlip, position screw, and sweep angle screw.
• Each angle is marked on the sweep angle plate with corresponding holes; rotate the plate to align the chosen angle hole to the "6 o’clock" or "12 o’clock" position, then reassemble and tighten securely.

Adjusting the Wiper Park Position

• For left-side parking: rotate the selected angle hole to the "6 o’clock" position.
• For right-side parking: rotate the selected angle hole to the "12 o’clock" position.

Technical specifications

• Brand: SEAFLO
• Series: 01 Series
• Commercial model: 01 Series Wiper Motor
• Model numbers: SFWM1-0664-01 (12 V), SFWM2-0664-01 (24 V)
• Max current: 2.5 A (12 V), 1.2 A (24 V)
• Voltage: 12 V (SFWM1-0664-01), 24 V (SFWM2-0664-01)
• Torque: 6 Nm
• Shaft: 64 mm / 2.5" (stainless steel driveshaft with anti-rotation design)
• Sweep angles: 50°, 65°, 80°, 110° (adjustable)
• Sweep speed: 45 sweeps/min
• Fuse recommendation: 5 A (12 V), 3 A (24 V)
• Housing: UV- and high-temperature-resistant thermoplastic
• Self-parking: adjustable to left or right
• Powers arm/blade combinations up to 440 mm / 355 mm
