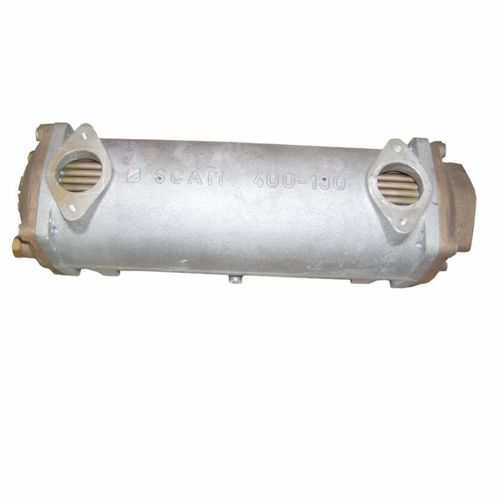

Shell and tube heat exchanger IT SCAM 400/130
for boats

shell and tube heat exchanger
shell and tube heat exchanger
Add to favorites
Compare this product


Characteristics

Type
shell and tube
Application domain
for boats

Description

Length of the center - 400 mm Diameter of the center - 130 mm Connectors - fresh water...1 1/2¨, sea water...1¨ or 1 1/2¨ Description The shell of the heat exchanger is made of cast aluminium, covers are made of bronze with zinc protectors, tubing is also bronze with copper-nickel tubes of 7 mm in diameter. Cooling area is 1.32 m2. Info Heat exchangers are used in double engine cooling systems for the cooling of cooling media as well as engine oil. They are also used for the cooling of gearbox oil.
