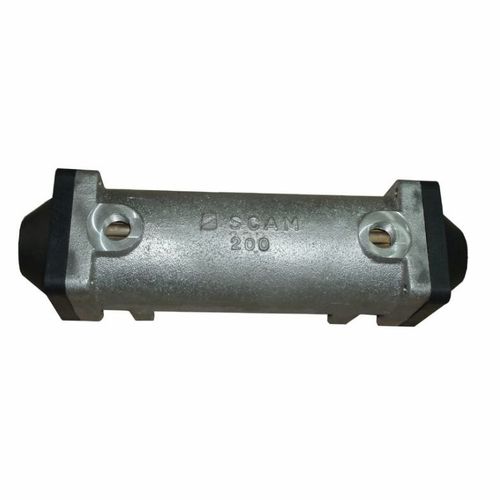

Type of product - Heat exchanger
Length of the center - 200 mm
Diameter of the center - 55 mm
Connectors - oil...M16x1,5 or 5/16¨, sea water...3/4¨ or 1¨
The shell of the heat exchanger is made of cast aluminium; covers are made of plastics, whereas tubing is bronze with copper-nickel tubes of 7 mm in diameter. Cooling area is 0.13 m2.
Heat exchangers are used in double engine cooling systems for the cooling of cooling media as well as engine oil. They are also used for the cooling of gearbox oil.
