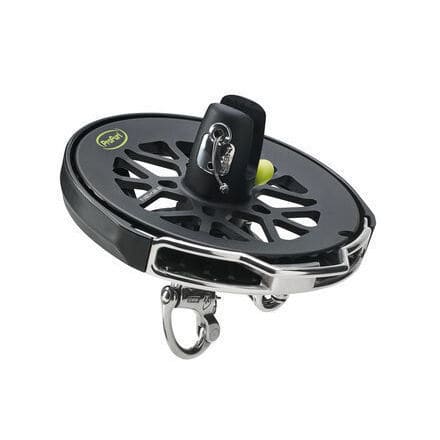

Sailboat furler NEX0.9

spinnaker8 mmracing

Description
The NEX0.9 flying sail furler integrates multiple technological improvements developed since the original NEX launch in 2010. Designed for cruising and offshore use, this model offers controlled furling and simplified handling for flying sails up to 35 m².

Technical description

• Optimised performance: fast furling speed, reduced weight and compact footprint
• Improved comfort and safety during furling and unfurling operations
• Integrated ratchet (FurlAssist) for controlled furling and prevention of accidental unfurling; operates in both directions without extra lines
• User‑friendly: straightforward installation and intuitive sail trimming
• Proven, low‑maintenance technology
• Wide range of end fittings to suit different deck layouts
• Contemporary product design
• International 3‑year warranty

Components
This product includes one spool, one swivel, one snap shackle (lower terminal) and one eye (upper terminal).

Technical specifications

• Product reference: NEX0.9
• Navigation program: cruising, cruiser‑racing, racing, offshore racing
• Max sail area (m²): 35
• Structural system: No
• Partial furling: No
• Ratchet: Yes (FurlAssist)
• Working load (Kg): 900
• Spool diameter (mm): 120
• Pin diameter (mm): 8
• Furling line diameter (mm): 8
• Upper terminal: Eye
• Lower terminal: Clevis pin snap shackle
• Warranty: 3 years
• Options available: Eye, MXEVO halyard shackle, snap shackle with fairlead feature
• Main dimensions (mm): A=74, B=128, C=12, D=63.3, E=31, F=18, G=8
