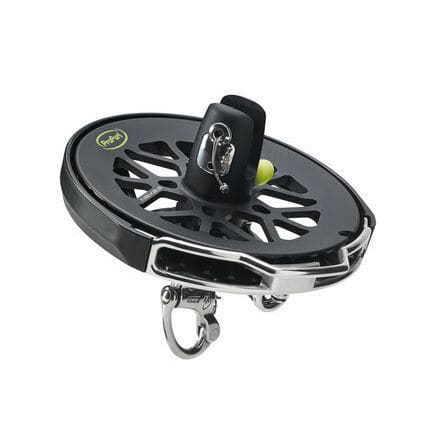

Sailboat furler NEX12.0

spinnaker10 mmracing

Description
The NEX flying sail furler integrates technical improvements derived from continuous development since the first NEX in 2010. Designed for offshore and performance cruising, the NEX12.0 range of 7 models covers light sail areas up to 450 m² and is suitable for yachts over 80'.

Technical description

• Performance: optimized furling speed, weight and footprint
• Comfort and safety during furling and unfurling operations
• Ratchet feature (FurlAssist) for improved control and to prevent accidental unfurling; operates in both directions without extra lines
• Ease of use: straightforward installation and fast, intuitive sail trimming
• Reliable, proven and low-maintenance technology
• Wide range of end fittings to adapt to different deck layouts
• Contemporary product design
• 3-year international warranty

Components

• One spool
• One swivel
• Delivered without terminals

Documentation and CAD files
Installation manual and CAD files available (PDF, DXF).

Technical information

• Sailing program: cruising, racing, offshore racing
• Light sail area (m²): 450
• Structural system: No
• Partial furling of the sail: No
• Ratchet: Yes
• Working load (kg): 12000
• Spool diameter (mm): 250
• Pin diameter (mm): 18
• Furling line diameter (mm): 10
• Upper terminal: According to deck layout
• Lower terminal: According to deck layout
• Warranty: 3-year international warranty
• Options available: Eye, halyard block, solidsheave, 12T swivel lock
• A (mm): 166.5
• B (mm): 263
• C (mm): 25.1
• D (mm): 128
• E (mm): 72
• F (mm): 43
• G (mm): 18

Characteristics / technical specifications

• Model: NEX12.0
• Working load: 12000 Kg
• Maximum sail area (light): 450 m²
• Spool diameter: 250 mm
• Pin diameter: 18 mm
• Furling line diameter: 10 mm
• Ratchet: Yes
• Structural system: No
• Partial furling: No
• Sailing program: Cruising, racing, offshore racing
• Included components: one spool, one swivel (delivered without terminals)
• Warranty: 3-year international warranty
• Options: Eye, halyard block, solidsheave, 12T swivel lock
