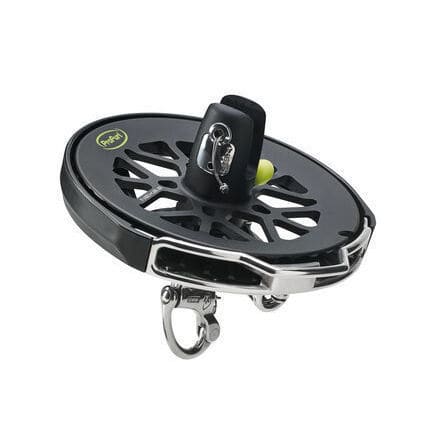

Sailboat furler NEX2.5

spinnaker10 mmracing

Description
The NEX flying sail furler combines multiple technical improvements derived from the NEX range (first released in 2010), delivering improved performance, safety and handling on board. Available in 7 models covering sail areas up to 350 m², it is suited to yachts over 80'.

Technical description

• Performance: optimized furling speed, reduced weight and compact footprint
• Improved safety and crew comfort during furling and unfurling operations
• FurlAssist ratchet: precise control of furling to prevent accidental unfurling; operates in both directions without extra lines
• Easy to install and intuitive to trim under sail
• Proven, low-maintenance technology
• Wide choice of end fittings to adapt to deck layouts
• Speed variant available with smaller spool (Ø 150 mm) for faster furling, reduced weight and compact dimensions — ideal for sport and racing boats
• 3-year international warranty

Components

• One spool
• One swivel
• One clevis pin snap shackle (lower terminal)
• One D shackle (upper terminal)

Technical information

• Sailing program: cruising, cruiser-racer, racing and offshore
• Light sail area (m²): 80
• Storm sail area (m²): 30
• Structural system: No
• Partial furling: No
• Ratchet: Yes (FurlAssist)
• Working load (kg): 2500
• Spool diameter (mm): 180
• Pin diameter (mm): 10
• Furling line diameter (mm): 10
• Upper terminal: D shackle
• Lower terminal: Clevis pin snap shackle
• Options available: eye, halyard block, MXEVO halyard shackle, solidsheave, swivel lock 2.5T
• Dimensions A (mm): 100.2
• Dimensions B (mm): 192
• Dimensions C (mm): 18
• Dimensions D (mm): 68.3
• Dimensions E (mm): 42
• Dimensions F (mm): 26
• Dimensions G (mm): 10

Characteristics / technical specifications

• Model: NEX2.5
• Working load: 2500 kg
• Max sail area (light): 80 m²
• Storm sail area: 30 m²
• Spool diameter: 180 mm
• Pin diameter: 10 mm
• Recommended furling line diameter: 10 mm
• Upper terminal: D shackle
• Lower terminal: Clevis pin snap shackle
• Ratchet: Yes (FurlAssist)
• Warranty: 3-year international warranty
• Included components: spool, swivel, clevis pin snap shackle, D shackle
