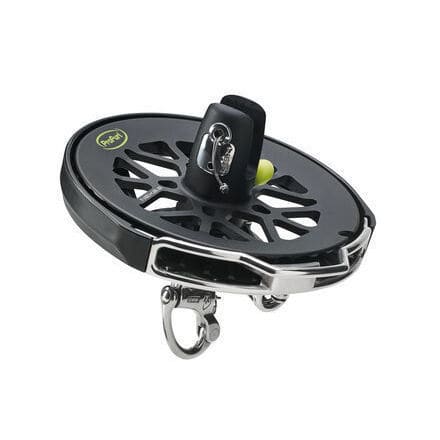

Sailboat furler NEX6.5

headsailgenoajib

Description
The NEX flying sail furler is available with multiple innovations and technological improvements derived from experience since the first NEX launched in 2010. These developments increase performance, safety and ease of handling at sea. The NEX family includes 7 models covering sail areas up to 350 m² and is suitable for yachts over 80'.

Technical description

• Performance: optimized furling speed, weight and footprint
• Comfort and safety during furling and unfurling operations
• Ratchet feature (FurlAssist) for improved furl control to prevent accidental unfurling; operates in both directions without additional lines
• Ease of use: simple installation and fast, intuitive sail trimming
• Reliable, proven and maintenance-free technology
• Wide range of end fittings for better adaptation to your deck layout
• Contemporary product design
• 3-year international warranty

Components

• One spool (drum)
• One swivel
• One trigger snap shackle (lower terminal)
• One D shackle (upper terminal)

Technical information

• Sailing program: Cruising, racing, offshore racing
• Light sail area (m²): 240
• Storm sail area (m²): 65
• Structural system: No
• Partial furling of the sail: No
• Ratchet: Yes (FurlAssist)
• Working load (Kg): 6500
• Spool diameter (mm): 220
• Pin diameter (mm): 14
• Furling line diameter (mm): 10
• Upper terminal: D shackle
• Lower terminal: Trigger snap shackle
• Options available: Eye, halyard block, solidsheave, swivel lock 6.5T
• Dimensions: A = 126 mm; B = 232 mm; C = 25.1 mm; D = 82.7 mm; E = 50 mm; F = 39 mm; G = 14 mm
• Warranty: 3-year international warranty

Characteristics / technical specifications

• Model: NEX6.5
• Working load: 6500 Kg
• Max (light) sail area: 240 m²
• Storm sail area: 65 m²
• Spool diameter: 220 mm
• Pin diameter: 14 mm
• Furling line diameter: 10 mm
• Ratchet: Yes (FurlAssist)
• Upper terminal: D shackle
• Lower terminal: Trigger snap shackle
• Sailing program: Cruising, racing, offshore racing
• Options: Eye, halyard block, solidsheave, swivel lock 6.5T
• Warranty: 3-year international warranty
• Includes: spool, swivel, trigger snap shackle, D shackle
