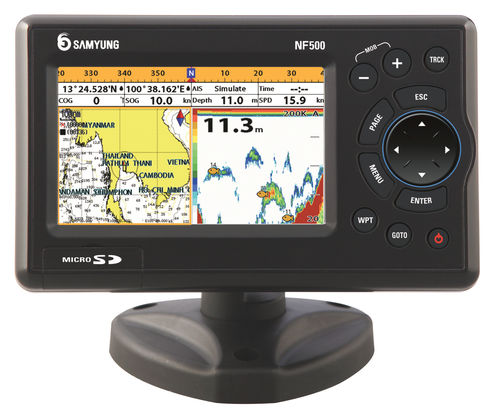

Chart plotter N500/NF500
DGPSWAASmarine

chart plotter
chart plotter
Add to favorites
Compare this product

Characteristics

Function
chart plotter, DGPS, WAAS
Application domain
marine
Technology
color
Mount
fixed

Description

Features • Wide 5" High resolution TFT LCD • Fast screen response by high performance CPU • 10 steps adjustable LED backlight • Multiple languages available including English, Chinese, Russian,Thai, Malay etc. • 128MB internal memory and built-in standard Samyung chart • DGPS(WAAS, MSAS, EGNOS) • User-friendly operation type by using icon for each menu • NMEA 0183 interface (AIS, NAVTEX, DSC etc.) • 4 split screens (Chart, Data, Highway etc.) • Suitable for small fishing boat • Using single (200Khz,300W) & dual(50/200Khz,600W) frequency for detection of small and individual fish • Easy to use by auto gain Specifications • Size : 140 mm(H) x 190 mm(W) x 81.3 mm(D) • Display : Wide 5”, TFT color, 800 x 480 pixels • Supply voltage : 10 to 32 V DC • Operating temp. : -10℃ ~ 50℃ • Alarms : Arrival radius, anchor, XTE, danger, too shallow, too deep, fish,temperature, temperature rate, low battery, low fuel(optional),loss of DGPS fix, radar guard zone, dangerous AIS vessels. • Chart/User card : NAVIONICS® GOLD /Micro SD Card • Waypoints : 10,000 waypoints (Event Mark : 48, Mark Color : 16) • Routes : 100 Routes, with up to 100 points each • Tracks : By time or distance, 10 track of 15,000 points • Chart datums : 216 Chart datums (see next page) • Chart scale : 0.2 ~ 500 nm • Interface : NMEA 0183 (2 port) • Frequency : 200KHz • Output : 300W
