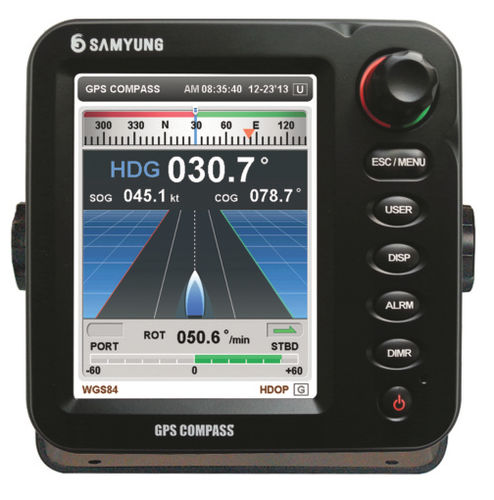

boat steering compass / electronic / vertical / with mounting bracket
SGC-750

{{requestButtons}}

Characteristics

  • Application domain:

    for boats

  • Type:

    electronic

  • Orientation:

    vertical

  • Mounting:

    with mounting bracket

  • Other characteristics:

    GPS

Description

Features

• Compliant with IMO MSC,116(73) Standard

• High contrast 5.6” colour TFT LED

• Three Antenna type, high precision and stability (0.5RMS)

• Short set-up time and high precision

• Multi-information display mode (Compass, GPS, ROT, NAV etc)

Specifications

• Highly accurate GPS Compass with three antennas
• Short setting time and fast follow-up

• Function of GPS reception

• Direct connection with Samyung RADAR SMR-3700/7200

• Receiver type: Muti channel(12 channels)

• Receiver frequency: 1575.42Mhz +/- 1Mhz(C/A code)

• Receiver sensitivity: -130dBm ~ -133dBm

• Heading accuracy: 0.5RMS(C/A code, HDOP(4)

• Temperature: -15C ~ +55C

• Storage Temperature: -20C ~ +70C

• Water protection: IPX4(ANT)

• Vibration: IEC60945

• EMC: IEC60945

• Resolution: 0.1

• Setting time: 2 min

• Power supply: 12~24V
