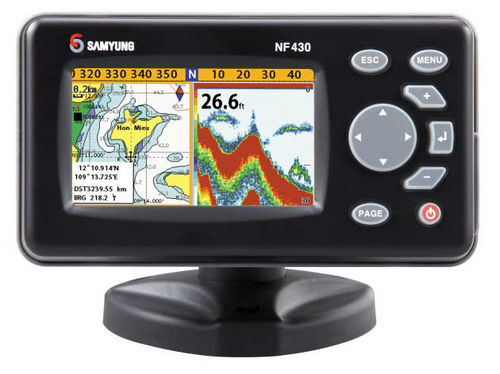

GPS N430/NF430
chart plottermarinecolor

GPS
GPS
Add to favorites
Compare this product


Characteristics

Function
GPS, chart plotter
Application domain
marine
Technology
color
Mount
fixed

Description

Features • Wide 4.3”High resolution TFT LCD • Fast screen response by high performance CPU • 10 steps adjustable LED backlight • Multiple languages available including English, Chinese, Russian,Thai, Malay etc. • 128MB internal memory and built-in standard Samyung chart • DGPS(WAAS, MSAS, EGNOS) • User-friendly operation type by using icon for each menu • NMEA 0183 interface (AIS, NAVTEX, DSC etc.) • 2 split screens (Chart, Data, Highway etc.) • Suitable for small fishing boat • Using single frequency (200Khz) for detection of small and individual fish • Easy to use by auto gain Specifications • Size : 127.5 mm(H) x 183 mm(W) x 91.5 mm(D) • Display : Wide 4.3”, TFT color, 480 x 272 pixels • Supply voltage : 10 to 36 V DC • Supply current : 13.8 V, 0.13A min-no backlighting. 0.24A max-full backlighting. • Operating temp. : -10℃ ~ 50℃ • Alarms : Arrival radius, anchor, XTE, danger, too shallow, too deep, fish,temperature, temperature rate, low battery, low fuel(optional),loss of DGPS fix, radar guard zone, dangerous AIS vessels. • Chart/User card : NAVIONICS® GOLD SD Card (NT-MAX, NT+ or NT) / SD Card • Waypoints : 10,000 waypoints (Event Mark : 48, Mark Color : 16) • Routes : 100 Routes, with up to 100 points each • Tracks : By time or distance, 10 track of 15,000 points • Chart datums : 216 Chart datums (see next page) • Chart scale : 0.2 ~ 500 nm • Interface : NMEA 0183 • Frequency : 200KHz • Output : 250W
