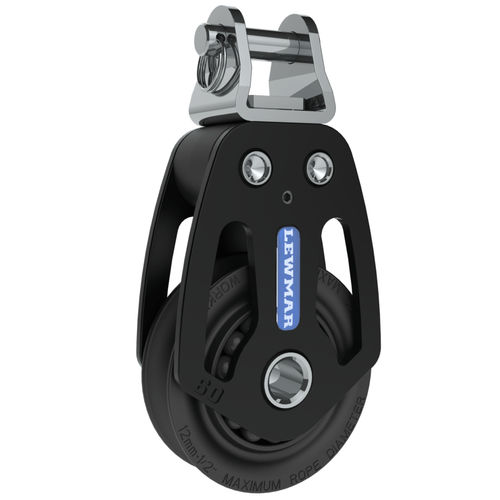

plain bearing block / cheek / mast foot / single
HTX Togglehead



  • Type:

    plain bearing, cheek, mast foot

  • Number of sheaves:


  • Configuration:

    with swiveling toggle

  • Maximum line diameter:

    max. rope ø 12 mm, max. rope ø 10 mm, max. rope ø 14 mm, max. rope ø 16 mm

  • Application domain:

    for sailboats

  • Applications:

    halyard, mast

  • Working load:

    800 kg, 1,100 kg, 2,000 kg, 3,500 kg (1,763.7 lb)


Years of design and manufacturing experience coupled with collaboration with boat builders, designers and sailors have resulted in the Lewmar HTX Hardware Range. Drawing upon the design of the Racing Range, the HTX blocks are constructed simply from high quality materials, providing enhanced reliability. HTX blocks are ideal for frequently adjusted, highly loaded systems using modern line technology and reduced line diameters.


Strong aluminium side cheeks
Central plain bearing for efficiency at high loads
Side thrust delrin ball bearings
Toggle head designed to fit on the studs commonly found at mast bases
