plain bearing block / cheek / flat / single

Add to MyNauticExpo favorites
Compare this product

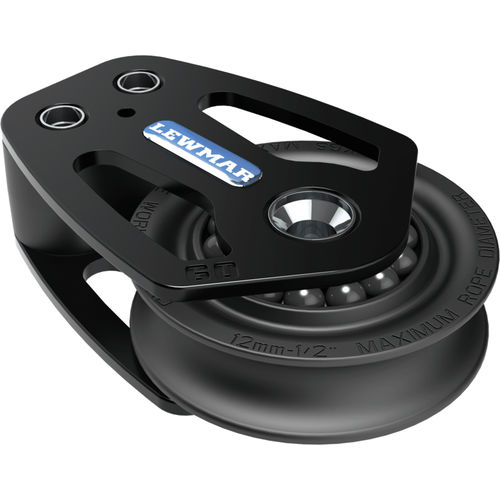

plain bearing block / cheek / flat / single plain bearing block / cheek / flat / single - HTX


  • Type:

    plain bearing, cheek, flat

  • Number of sheaves:


  • Configuration:

    base plate

  • Maximum line diameter:

    max. rope ø 12 mm, max. rope ø 10 mm, max. rope ø 14 mm, max. rope ø 16 mm

  • Application domain:

    for sailboats

  • Working load:

    800 kg, 1,100 kg, 2,000 kg, 3,500 kg (1,763.7 lb)

  • Breaking load:

    1,600 kg, 2,200 kg, 4,000 kg, 7,000 kg (3,527.4 lb)


Years of design and manufacturing experience coupled with collaboration with boat builders, designers and sailors have resulted in the Lewmar HTX Hardware Range. Drawing upon the design of the Racing Range, the HTX blocks are constructed simply from high quality materials, providing enhanced reliability. HTX blocks are ideal for frequently adjusted, highly loaded systems using modern line technology and reduced line diameters.


Strong aluminium side cheeks
Central plain bearing for efficiency at high loads
Side thrust delrin ball bearings

60/72mm sheave sizes use M8 (5/16") fixings - Not included.
90mm sheave sizes use M10 (3/8") fixings - Not included.
