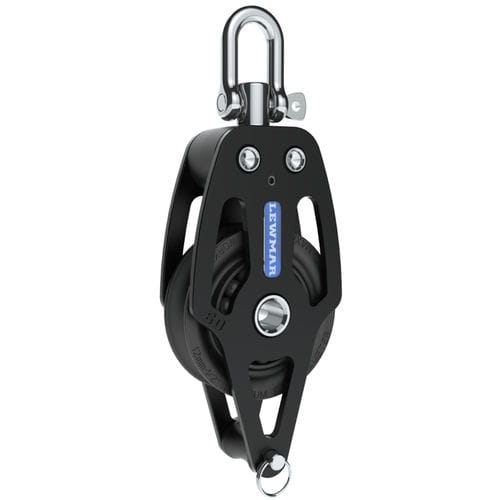

Single block HTX
swivelwith swivelwith becket

single block
single block
Add to favorites
Compare this product


Characteristics

Number of sheaves
single
Type
swivel
Configuration
with swivel, with becket
Bearing type
plain bearing
Maximum line diameter
max. rope ø 10 mm, max. rope ø 12 mm, max. rope ø 14 mm, max. rope ø 16 mm
Application domain
for sailboats
Working load

800 kg, 1,100 kg, 2,000 kg, 3,500 kg
(1,763.7 lb, 2,425.1 lb, 4,409.2 lb, 7,716.2 lb)

Breaking load

1,600 kg, 2,200 kg, 4,000 kg, 6,000 kg
(3,527.4 lb, 4,850.2 lb, 8,818.5 lb, 13,227.7 lb)

Description

Years of design and manufacturing experience coupled with collaboration with boat builders, designers and sailors have resulted in the Lewmar HTX Hardware Range. Drawing upon the design of the Racing Range, the HTX blocks are constructed simply from high quality materials, providing enhanced reliability. HTX blocks are ideal for frequently adjusted, highly loaded systems using modern line technology and reduced line diameters. Features Strong aluminium side cheeks Central plain bearing for efficiency at high loads Side thrust delrin ball bearings Head design inspired by Lewmar Racing Range with grub screw swivel head locking mechanism
