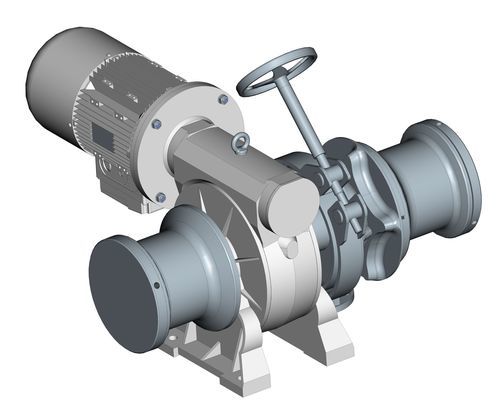

Hydraulic windlass CW-20

worm gearelectricfor boat

Description
The CW-20 anchor windlass features an oil-lubricated worm gear reducer directly coupled to a hydraulic or three-phase electric motor. The standard CW-20 windlass can accommodate a single gypsy for chains up to 20.5mm with a stud link. A double gypsy option is available. The reducer is coated for marine environments.

Features
MOTOR POWER | SUPPLY VOLTAGE | MAX INSTANTANEOUS PULL | WORKING LOAD AT LIFTING | RECOVERY SPEED UNDER LOAD | AVERAGE CONSUMPTION
7500W | 230V/400V | 6100 Kg | 2400 Kg | 14 m/min | N/A
HY | N/A | 3000 Kg | 3000 Kg | 12 m/min | N/A

Chain
Gypsy | Supported Chain
20.5 C.T. | 20.5 Stud link

Dimensions (7500 version)
A | B | C | D
910 | 600 | 310 | 560

Dimensions (HY version)
A | B | C | D
590 | 600 | 310 | 560

Note
All measurements are in mm

Features / Technical Specifications

• Oil-lubricated worm gear reducer
• Hydraulic or three-phase electric motor
• Single gypsy for chains up to 20.5mm with stud link
• Double gypsy option available
• Coated for marine environment
• MOTOR POWER: 7500W (electric), HY (hydraulic)
• SUPPLY VOLTAGE: 230V/400V (electric), N/A (hydraulic)
• MAX INSTANTANEOUS PULL: 6100 Kg (electric), 3000 Kg (hydraulic)
• WORKING LOAD AT LIFTING: 2400 Kg (electric), 3000 Kg (hydraulic)
• RECOVERY SPEED UNDER LOAD: 14 m/min (electric), 12 m/min (hydraulic)
• AVERAGE CONSUMPTION: N/A
• Gypsy: 20.5 C.T.
• Supported Chain: 20.5 Stud link
• Dimensions (7500): A=910 mm, B=600 mm, C=310 mm, D=560 mm
• Dimensions (HY): A=590 mm, B=600 mm, C=310 mm, D=560 mm
