Electric windlass CW-19

hydraulicfor boathorizontal

Description

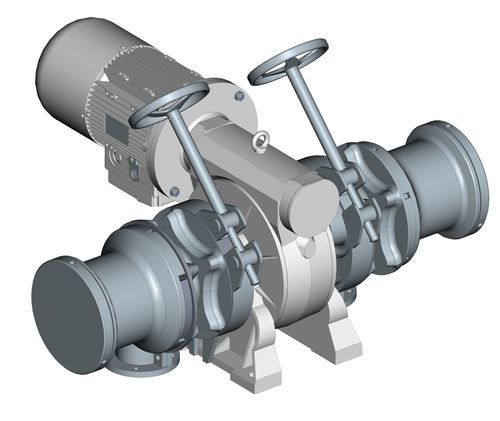

The CW-19 windlass incorporates an oil-lubricated worm gear reducer directly coupled to a hydraulic or three-phase electric motor. The standard CW-19 winch can accommodate a single gypsy for chains up to 19mm with a crossbar. The windlass is available with the option of a double gypsy. The reducer is coated for marine environments.

Features
5000W Version
MOTOR POWER: 5000W
SUPPLY VOLTAGE: 2230V/400V
MAXIMUM INSTANTANEOUS PULL: 4800 Kg
WORKING LOAD LIFTING: 1500 Kg
LOAD RECOVERY SPEED: 13 m/min
AVERAGE CONSUMPTION: N/A

7500W Version
MOTOR POWER: 7500W
SUPPLY VOLTAGE: 230V/400V
MAXIMUM INSTANTANEOUS PULL: 5900 Kg
WORKING LOAD LIFTING: 1600 Kg
LOAD RECOVERY SPEED: 13 m/min
AVERAGE CONSUMPTION: N/A

HY Version (Hydraulic)
MOTOR POWER: HY
SUPPLY VOLTAGE: N/A
MAXIMUM INSTANTANEOUS PULL: 3000 Kg
WORKING LOAD LIFTING: 3000 Kg
LOAD RECOVERY SPEED: 12 m/min
AVERAGE CONSUMPTION: N/A

Chain

• Gypsy: 16 C.T. | Supported chain: 16 Stud link
• Gypsy: 17.5 C.T. | Supported chain: 17.5 Stud link
• Gypsy: 19 C.T. | Supported chain: 19 Stud link

Main Dimensions (mm)

• 3500
  A: 910
  B: 600
  C: 310
  D: 560
• 7500
  A: 910
  B: 600
  C: 310
  D: 560
• HY
  A: 590
  B: 600
  C: 310
  D: 560

Note: All measurements are in mm

Technical Specifications

• Oil-lubricated worm gear reducer
• Hydraulic or three-phase electric motor
• Single gypsy for chains up to 19mm with crossbar
• Double gypsy option available
• Coated for marine environment
• Available versions: 5000W, 7500W, HY (Hydraulic)
• Supported chains: 16, 17.5, 19 mm Stud link
• Load recovery speed: 12-13 m/min
• Maximum instantaneous pull: up to 5900 Kg
• Working load lifting: up to 3000 Kg
