Worm gear windlass CW-16
electrichydraulichorizontal

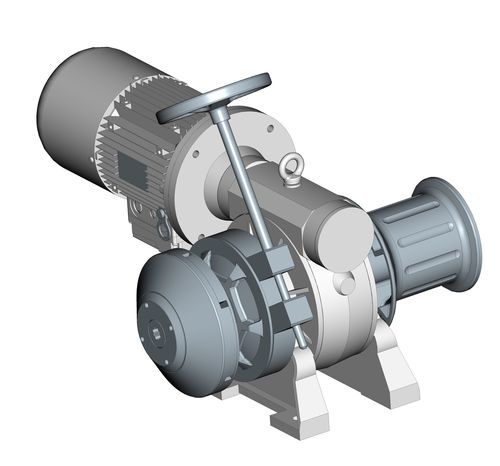

Worm gear windlass - CW-16 - Italwinch - electric / hydraulic / horizontal
Worm gear windlass - CW-16 - Italwinch - electric / hydraulic / horizontal
Worm gear windlass - CW-16 - Italwinch - electric / hydraulic / horizontal - image - 2
Add to favorites
Compare this product
Go to the Italwinch website for more information

Characteristics

Operation
worm gear, electric, hydraulic
Mounting
horizontal
Number of drums
double-drum, single-drum
Function
gypsy, double gypsy, single gypsy
Working load

1,200 kg, 1,500 kg, 1,600 kg, 2,500 kg
(2,646 lb, 3,307 lb, 3,527 lb, 5,512 lb)

Maximum pull

2,500 kg, 3,000 kg, 4,800 kg, 5,900 kg
(5,512 lb, 6,614 lb, 10,582 lb, 13,007 lb)

Engine power

3,000 W, 3,500 W, 4,000 W
(4 hp, 5 hp, 5 hp)

Power supply

24 V, 230 V, 400 V

Chain diameter

Max.: 16 mm
(1 in)

Min.: 12 mm
(0 in)

Height

300 mm
(12 in)

Width

500 mm
(20 in)

Length

Max.: 800 mm
(31 in)

Min.: 480 mm
(19 in)

Description

Description
The CW-16 windlass features an oil-lubricated worm gear reducer directly coupled to a hydraulic, DC 24V, DC 48V, or three-phase electric motor. The standard CW-16 winch can accommodate a single gypsy for chains up to 16mm with a crossbar. A double gypsy option is available. The reducer is coated for marine environments.

Specifications
  • Motor Power | Supply Voltage | Maximum Instantaneous Pull | Working Load at Lifting | Recovery Speed at Load | Average Consumption
  • 3500W | 24V | 3000 Kg | 1500 Kg | 14 m/min | N/A
  • 3000W | 230V/400V | 4800 Kg | 1200 Kg | 12 m/min | N/A
  • 4000W | 230V/400V | 5900 Kg | 1600 Kg | 12 m/min | N/A
  • HY | N/A | 2500 Kg | 2500 Kg | 12 m/min | N/A


Chain
  • Gypsy | Supported Chain
  • 12 mm | 12mm ISO
  • 12 mm | 13 mm DIN766
  • 12 mm | 7/16" G4
  • 1/2" HT | 1/2" HT
  • 13 DIN764 | 14mm DIN764
  • 14 mm | 14mm ISO
  • 16 mm | 16mm ISO
  • 16 DIN766 | 16mm DIN766
  • 12.5 C.T. | 12.5 Stud link
  • 14 C.T. | 14 Stud link
  • 16 C.T. | 16 Stud link


Dimensions (mm)
  • Model 3500 | Model 3000 | Model 4000 | Model HY
  • A: 700 | A: 700 | A: 800 | A: 480
  • B: 500 | B: 500 | B: 500 | B: 500
  • C: 300 | C: 300 | C: 300 | C: 300
  • D: 450 | D: 450 | D: 450 | D: 450

Note: All dimensions are in mm

Features / Technical Specifications
  • Oil-lubricated worm gear reducer
  • Hydraulic, DC 24V, DC 48V, or three-phase electric motor
  • Single gypsy for chains up to 16mm with crossbar
  • Double gypsy option available
  • Marine environment coating
  • Supported chains: 12mm ISO, 13mm DIN766, 7/16" G4, 1/2" HT, 13 DIN764, 14mm DIN764, 14mm ISO, 16mm ISO, 16mm DIN766, 12.5 C.T., 12.5 Stud link, 14 C.T., 14 Stud link, 16 C.T., 16 Stud link
  • Motor power: 3000W, 3500W, 4000W, HY
  • Supply voltage: 24V, 230V/400V, N/A
  • Maximum instantaneous pull: 3000 Kg, 4800 Kg, 5900 Kg, 2500 Kg
  • Working load at lifting: 1500 Kg, 1200 Kg, 1600 Kg, 2500 Kg
  • Recovery speed at load: 14 m/min, 12 m/min
