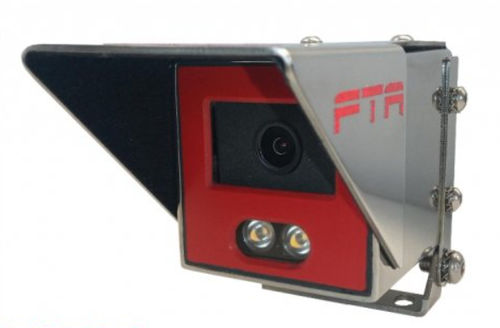

Video surveillance camera QMVP
low-lightprofessionalcolor

Video surveillance camera - QMVP - FTA B.V. - low-light / professional / color
Video surveillance camera - QMVP - FTA B.V. - low-light / professional / color
Video surveillance camera - QMVP - FTA B.V. - low-light / professional / color - image - 2
Video surveillance camera - QMVP - FTA B.V. - low-light / professional / color - image - 3
Video surveillance camera - QMVP - FTA B.V. - low-light / professional / color - image - 4
Video surveillance camera - QMVP - FTA B.V. - low-light / professional / color - image - 5
Add to favorites
Compare this product
Go to the FTA B.V. website for more information

Characteristics

Type
video surveillance, low-light
Application domain
professional
Technology
color, analog, full HD
Mounting
fixed
Voltage
9 V, 36 V
Material
stainless steel
Protection level
IP69K
Field of view

Min.: 14 °

Max.: 170 °

Height

60 mm
(2 in)

Width

60 mm
(2 in)

Depth

60 mm
(2 in)

Weight

480 g
(17 oz)

Description

Product overview
  • Model: QMVP (Qbe)
  • Stainless steel full-color camera with fixed lens angle and visible auxiliary white illumination


Key features
  • Supports classic analog CVBS (960H) and Full HD outputs (AHD, TVI, CVI, 1080P)
  • Coaxial camera with transmission options over coax, network cable, fiber or wireless (adapters)
  • Selectable horizontal or vertical image orientation without hardware modification
  • Sony Starvis advanced low-light color sensor
  • Choice of 8 lens angles from 14° to 170°
  • Two integrated white LEDs with automatic (smart light) and/or manual on/off control
  • OSD configuration via coax (UTC)
  • Power supply 9–36V DC, galvanically isolated
  • Universal connector compatible with all FTA cameras
  • Nitrogen-filled solid stainless steel housing with unbreakable window
  • Ingress protection IP69K
  • Dimensions: 60 x 60 x 60 mm; Weight: 480 g
  • Expandable with accessories (stainless steel sunshield, connector cover, mounting brackets)


Configuration & settings
  • Default video modes: CVBS (960H), AHD/TVI/CVI (1080P)
  • Desired settings can be specified at order; configurable at any time
  • Mirror or normal image selectable
  • Light control: automatic / on / off — on/off directly on the camera


Notes
  • Also available as network (IP) model QMVNP


Technical specifications
  • Model / code: QMVP
  • Sensor: Sony Starvis advanced low-light color sensor
  • Video outputs: CVBS (960H), AHD/TVI/CVI (1080P)
  • Lens angles: 8 options (14°–170°)
  • Illumination: 2 integrated white LEDs, automatic and manual
  • OSD: adjustable via coax (UTC)
  • Power: 9–36V DC (galvanically isolated)
  • Housing: nitrogen-filled solid stainless steel
  • Window: unbreakable
  • Ingress protection: IP69K
  • Dimensions: 60 x 60 x 60 mm
  • Weight: 480 g
  • Accessories: sunshield, connector cover, mounting brackets, etc.
