CCTV video camera TMDIR4P
night visionfor shipsinfrared

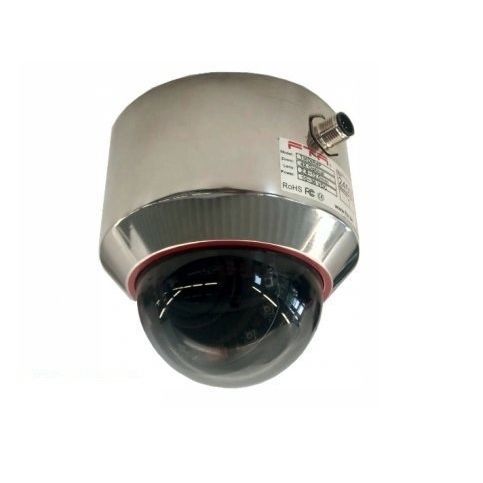

CCTV video camera - TMDIR4P - FTA B.V. - night vision / for ships / infrared
CCTV video camera - TMDIR4P - FTA B.V. - night vision / for ships / infrared
Add to favorites
Compare this product
Go to the FTA B.V. website for more information

Characteristics

Type
CCTV, night vision
Application domain
for ships
Technology
analog, infrared, IR, full HD
Mounting
dome
Voltage
36 V
Material
stainless steel
Protection level
IP69K
Other characteristics
with zoom, miniature
Field of view

Max.: 350 °

Min.: 70 °

Lens

Max.: 12 mm
(0 in)

Min.: 3 mm
(0 in)

Zoom

4 unit

Height

110 mm
(4 in)

Width

114 mm
(4 in)

Description

Product
  • Article code: TMDIR4P
  • Turret stainless steel mini-dome camera


Main features
  • Selectable video formats: CVBS (960H) and Full HD (AHD, TVI, CVI)
  • Video transmission over coax
  • Day/night sensor
  • 4x optical zoom (2.8–12.0 mm)
  • Landscape or portrait orientation (selectable at order)
  • Integrated IR illumination—range up to 50 m
  • OSD configuration menu
  • Control via RS-485 (Pelco-D) and coaxial UTC
  • Pan: 0°–350°; Tilt: 0°–70° (14°–84° relative to horizontal)
  • Power: 10–36 V DC
  • Universal connector for FTA cameras
  • Nitrogen filled
  • Protection rating: IP69K
  • Dimensions: Ø114 mm x H110 mm
  • Weight: not specified
  • Various mounting flanges available


Base settings
  • CVBS (analog 960H) and AHD/TVI/CVI (Full HD 1080P)
  • Desired settings can be specified at order or adjusted via RS-485 (Pelco-D) or XVI controller


Note
  • Also available in network (IP) version: TMDIR4NP


Technical specifications
  • Model / article code: TMDIR4P
  • Type: Turret stainless steel mini-dome camera
  • Video outputs: CVBS (960H), AHD, TVI, CVI (1080P)
  • Image transmission: over coax
  • Day/night: sensor present
  • Optical zoom: 4x (2.8–12.0 mm)
  • IR illumination: integrated, range up to 50 m
  • OSD menu: available
  • Control: RS-485 (Pelco-D) and coaxial (UTC)
  • Pan range: 0°–350°
  • Tilt range: 0°–70° (14°–84° relative to horizontal)
  • Power supply: 10–36 V DC
  • Connector: universal for FTA cameras
  • Filling: nitrogen filled
  • Ingress protection: IP69K
  • Dimensions: diameter 114 mm x height 110 mm
  • Weight: not specified
  • Accessories: various mounting flanges available
