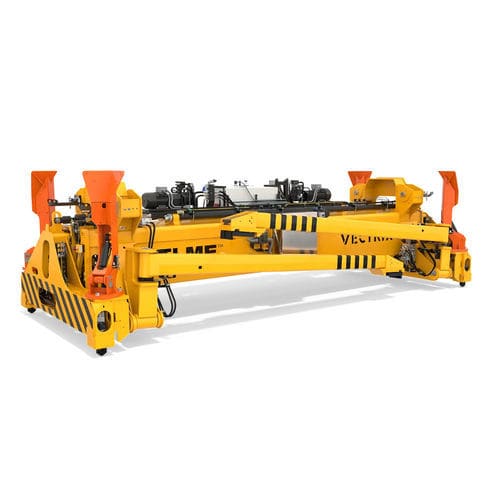

Trailer spreader 8610 Vectrix

for containerstelescopicelectric

Overview

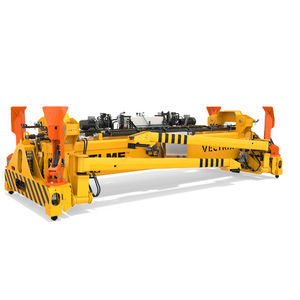

Spreader model 8610 Vectrix is a telescopic piggyback top-lift spreader for intermodal handling of laden ISO containers and trailers up to 45 tonnes. It is engineered for mounting on Rail Mounted Gantry (RMG) or Rubber Tyred Gantry (RTG) cranes. Two parallel telescopic beams provide maximum overlap and structural stiffness to absorb vertical and significant horizontal forces.

VECTRIX
The Vectrix series combines modular design and precision engineering for simplified customization and serviceability. Modular components allow quick replacement, reducing downtime and lifecycle costs.

Twistlock system
The spreader features hardened pendular ISO quick-exchange twistlocks with hydraulic activation and electrical plus mechanical interlocks to prevent incorrect locking or unlocking. Twistlocks are dimensioned for heavy operational loading.

Telescoping system
Each beam is telescoped by one hydraulic cylinder mounted on top of the mainframe for accessibility. Dual electric motor and pump assemblies provide synchronized and reliable beam extension between 20ft and 40ft.

Piggyback legs system
The automatic folding piggyback legs follow ELME's load-clamping sequence, enabling lowering between block-stacked containers. Feet are manufactured in Strenx® 900E (meets S 890 QL). Integrated sensors detect trailer clamping and lifting to prevent unintended unclamping.

Control and protection system
Control voltage is converted to 24 V DC. Continuous electrical monitoring provides status indications for seating, locking/unlocking and piggyback modes (lifted, clamped, unclamped). Signals are used as preconditions for protection functions: twistlock activation, telescoping, piggyback operation and lift enable.

Design standards
Designed in compliance with EN15056 and EN13001.

Standard supply includes

• Mounting arrangement to fit crane
• Four vertical pendular ISO twistlocks
• Lifting eyes near twistlocks
• Hydraulic telescoping system
• Hydraulic leg folding
• Hydraulic clamp and unclamp
• Solenoid valves for all hydraulic functions
• Four foldable piggyback legs in automatic sequence with block stacking
• Electrical protection and indication system for trailer handling
• Electrical and mechanical twistlock protection and indication
• Electric telescoping protection system
• Lift enable signal
• LED indication lights
• Remote access for troubleshooting assistance
• Service mode for piggyback shoulders
• Idle mode on power pack for low-noise operation

Technical specification (table)
Type of application: RTG, RMG
Type of lifting system: Four twistlocks or four piggyback legs
Type of stacking: Normal and block stacking
Spreader weight (TW): 11 500 kg without extra equipment
Lifting capacity (SWL), twistlocks and piggyback: 45 tonnes ± 10% eccentric load
Lifting capacity (SWL), lifting eyes: 4 x 11.25 tonnes
Twistlock: ISO pendular 20 mm
Telescopic positions: 20ft and 40ft
Telescoping speed from 20ft-40ft: < 25 sec (calculated at 20° C)
Legs clamping distance, min / max: 1 766 ± 60 mm / 3 195 ± 60 mm
Legs clamping force: 3 kN
Legs centre distance: 4 876 mm
Legs unfold: < 29 sec (calculated at 20° C)
Legs fold: < 25 sec (calculated at 20° C)
Hydraulics, operating pressure up to: 140 bar
Hydraulics, flow: 46 L/min (2x23)
Hydraulics, tank volume: 100 L
Power supply: 400 VAC / 50 Hz
Electrical motors: 2 x 4 kW
Electric - control voltage: 24 VDC
Colour: Signal yellow RAL 1003
Corrosion class: C4M

Technical specifications

• Application: RTG, RMG
• Lifting system: Four twistlocks or four piggyback legs
• Stacking: Normal and block stacking
• Spreader weight (TW): 11 500 kg (without extra equipment)
• SWL (twistlocks & piggyback): 45 tonnes ± 10% eccentric load
• SWL (lifting eyes): 4 x 11.25 tonnes
• Twistlock: ISO pendular 20 mm
• Telescopic positions: 20ft and 40ft
• Telescoping speed (20ft→40ft): < 25 s (calculated at 20° C)
• Legs clamping distance (min/max): 1 766 ± 60 mm / 3 195 ± 60 mm
• Legs clamping force: 3 kN
• Legs centre distance: 4 876 mm
• Legs unfold / fold times: < 29 s / < 25 s (calculated at 20° C)
• Hydraulics pressure: up to 140 bar
• Hydraulics flow: 46 L/min (2x23)
• Hydraulics tank volume: 100 L
• Power supply: 400 VAC / 50 Hz
• Electrical motors: 2 x 4 kW
• Control voltage: 24 VDC
• Colour: Signal yellow RAL 1003
• Corrosion class: C4M
• Design standards: EN15056, EN13001
