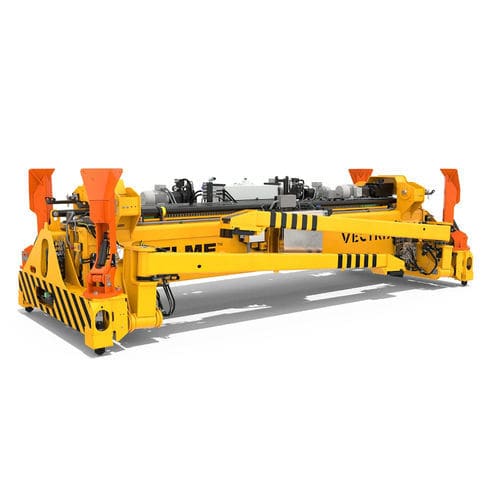

Trailer spreader 8615H Vectrix

for containerstelescopicelectric

For laden container handling with rail mounted or rubber tyred gantry cranes Spreader Model 8615H Vectrix is a hybrid electrical and hydraulic telescopic piggyback top lift spreader for intermodal handling of laden ISO containers and trailers up to 45 tonnes. 8615H Vectrix is designed for mounting on Rail Mounted (RMG) or Rubber Tyred Gantry (RTG) cranes. The hybrid spreader has a unique combination of the efficiency of our electric spreaders with the reliability of our well-known hydraulic piggyback legs system. Designed for operations where twistlock handling is primary, but occasional trailer handling is required, this solution optimizes energy consumption while ensuring full versatility. During twistlock handling, the spreader runs fully electrically, making it significantly quieter. Type of application - RTG, RMG Type of lifting system - Four twistlocks or four piggyback legs Type of stacking - Normal and block stacking Spreader weight (TW) - 12 050 kg without extra equipment Lifting capacity (SWL), twistlocks and piggyback - 45 tonnes ± 10% eccentric load Lifting capacity (SWL), lifting eyes - 4 x 11,25 tonnes Twistlock - ISO pendular 20 mm Telescopic positions - 20ft, 40ft and 45ft Telescoping speed from 20ft-40ft - < 22 sec. (calculated speed at 20° C) Telescoping speed from 20ft-45ft - < 25 sec. (calculated speed at 20° C) Legs clamping distance, min / max - 1 766 ± 60 mm / 3 195 ± 60 mm Legs centre distance - 4 876 mm Legs clamping force - 3 kN Legs unfold - < 29 sec. (calculated speed at 20° C) Legs fold - < 25 sec. (calculated speed at 20° C) Hydraulics, operating pressure up to - 140 bar Hydraulics, flow - 46 L/min (2x23) Hydraulics, tank volume - 100 L Power supply - 400 VAC/50 Hz
