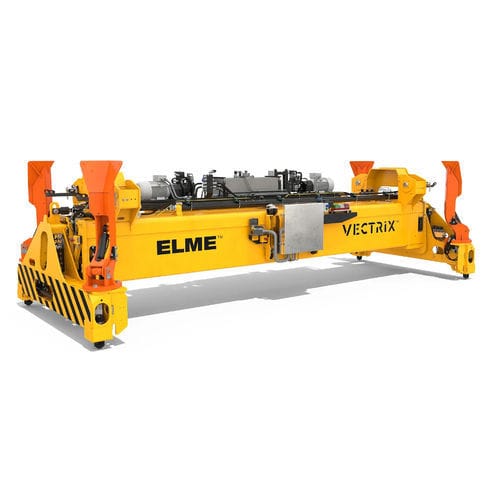

Container spreader 8210 Vectrix

telescopicelectric

For laden container handling with rail mounted or rubber tyred gantry cranes Spreader Model 8210 Vectrix is a telescopic top lift spreader for handling of laden ISO containers up to 45 tonnes. 8210 Vectrix is designed for mounting on Automated Rail Mounted (ARMG), Rail Mounted (RMG), Automated Rubber Tyred (ARTG) or Rubber Tyred Gantry (RTG) cranes. The strong and basic concept offers advantages, such as two parallel telescopic beams, assuring max overlap. Beam sections dimensioned to absorb not only the vertical, but also the very considerable horizontal forces. Type of application - ARTG, RTG, ARMG, RMG Spreader weight (TW) - 8 300 kg without extra equipment Lifting capacity (SWL), twistlocks - 45 tonnes ± 10% eccentric load Lifting capacity (SWL), lifting eyes - 4 x 11,25 tonnes Twistlock - ISO pendular 20 mm Telescopic positions - 20ft and 40ft Telescoping speed from 20ft-40ft - < 25 sec. (calculated speed at 20° C) Hydraulics, operating pressure up to - 140 bar Hydraulics, flow - 46 L/min (2x23) Hydraulics, tank volume - 100 L Power supply - 400 VAC/50 Hz Electrical motors - 2 x 4 kW Electric - control voltage - 24 VDC Colour - Signal yellow RAL 1003 Corrosion class - C4M
