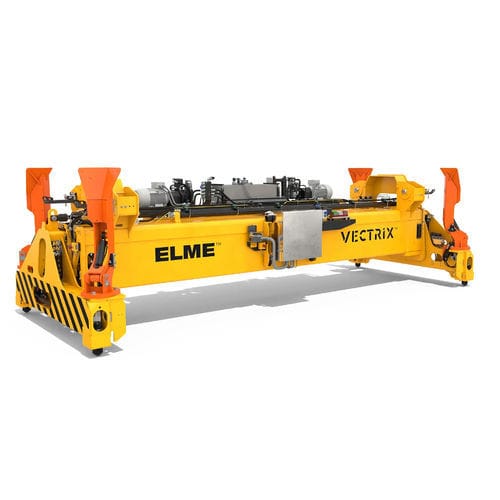

Container spreader 8215 Vectrix

telescopicelectric

For laden container handling with rail mounted or rubber tyred gantry cranes Spreader Model 8215 Vectrix is a telescopic top lift spreader for handling of laden ISO containers up to 45 tonnes. 8215 Vectrix is designed for mounting on Automated Rail Mounted (ARMG), Rail Mounted (RMG), Automated Rubber Tyred (ARTG) or Rubber Tyred Gantry (RTG) cranes. The strong and basic concept offers distinct advantages, such as two parallel telescopic beams, assuring max overlap. The beam sections are dimensioned to absorb not only the vertical, but also the very considerable horizontal forces. Type of application - ARTG, RTG, ARMG, RMG Spreader weight (TW) - 8 300 kg without extra equipment Lifting capacity (SWL), twistlocks - 45 tonnes ± 10% eccentric load Lifting capacity (SWL), lifting eyes - 4 x 11,25 tonnes Twistlock - ISO pendular 20 mm Telescopic positions - 20ft, 40ft and 45ft Hydraulics, operating pressure up to - 140 bar Hydraulics, flow - 46 L/min (2x23) Hydraulics, tank volume - 100 L Power supply - 400 VAC/50 Hz Electrical motors - 2 x 4 kW Electric - control voltage - 24 VDC Colour - Signal yellow RAL 1003 Corrosion class - C4M
