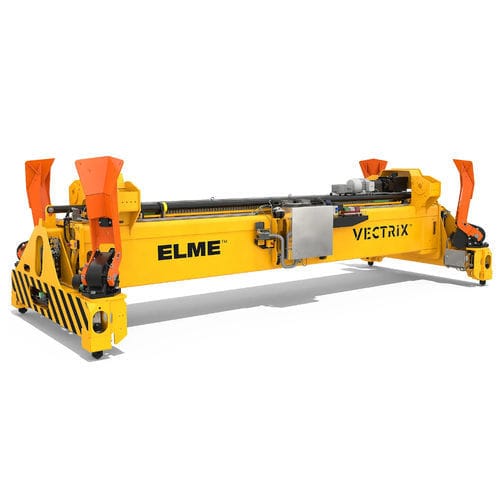

Container spreader 8215E Vectrix

telescopicelectric

For laden container handling with rail mounted or rubber tyred gantry cranes Spreader Model 8215E Vectrix is a electrical telescopic top lift spreader for handling of laden 20-45ft ISO containers up to 45 tonnes. 8215E Vectrix is designed for mounting on Automated Rail Mounted (ARMG), Rail Mounted (RMG), Automated Rubber Tyred (ARTG) or Rubber Tyred Gantry (RTG) cranes. The strong and basic concept offers distinct advantages, such as two parallel telescopic beams, assuring max overlap. Beam sections are dimensioned to absorb not only the vertical, but also the very considerable horizontal forces. Electric spreader 8215E Vectrix is silent and power efficient. Type of application - ARTG, RTG, ARMG, RMG Spreader weight (TW) - 8 250 kg without extra equipment Lifting capacity (SWL), twistlocks - 45 tonnes ± 10% eccentric load Lifting capacity (SWL), lifting eyes - 4 x 11,25 tonnes Twistlock - ISO pendular 20 mm Telescopic positions - 20ft, 40ft and 45ft Telescoping speed from 20ft-40ft - < 22 sec (calculated at 20° C) Telescoping speed from 20ft-45ft - < 25 sec. (calculated speed at 20° C) Power supply - 400 VAC/50 Hz Electrical motors - 1 x 4 kW, 2 x 0,37 kW Electric - control voltage - 24 VDC Colour - Signal yellow RAL 1003 Corrosion class - C4M
