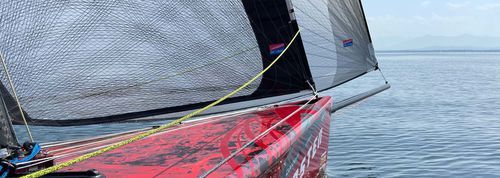

Yacht spinnaker pole

for boatfor sailboatscarbon

Product overview
Recreational and regatta sailors choose the carbon gennaker pole from CUL-Masten for lightweight performance and customized production. On request the pole can be reinforced with Innegra or aramid fibres to increase impact resistance. Manufactured in southern Germany using CUL production processes.

Laminate structure and reinforcements
The CUL laminate concept is designed for bowsprit loads from gennaker and Code 0. Partial reinforcements for fittings or a waterstay can be integrated. For higher impact resistance combinations of carbon with Innegra or aramid are available.

Installation solution gennaker pole
If the boat is not pre-equipped for a gennaker pole, CUL supplies installation tubes or boat-specific assemblies. Length and wall thickness are determined to specifications and in consultation with the yacht designer, shipyard or boatbuilder. Telescopic extendable poles are available where stowage space is limited or dual use with other sails is required.

End fittings
CUL-Masten supplies tailor-made, boat-specific end fittings manufactured as special parts on modern machines to ensure precise fit.

Images / Examples

• Gennaker pole with Dyneema line guide
• Gennaker pole with telescopic guide and waterstay for Code 0
• Gennaker pole for Elan S3 gennaker and Code 0
• Gennaker pole for Elan S3 stage 1 original length for Code 0
• Gennaker pole for Elan S3 stage 2 double length for gennaker
• Gennaker pole with mounted rear fitting
• Gennaker pole with tube for boat installation
• Front fitting with stop
• Stop with conical guide

Profile sizes
40 profile - 40 mm inner diameter - wall thickness as required - max length 6100 mm
50 profile - 50 mm inner diameter - wall thickness as required - max length 4700 mm
60 profile - 60 mm inner diameter - wall thickness as required - max length 5800 mm
70 profile - 70 mm inner diameter - wall thickness as required - max length 5700 mm
80 profile - 80 mm inner diameter - wall thickness as required - max length 7000 mm
90 profile - 90 mm inner diameter - wall thickness as required - max length 5700 mm
100 profile - 100 mm inner diameter - wall thickness as required - max length 8000 mm
110 profile - 110 mm inner diameter - wall thickness as required - max length 8000 mm
125 profile - 125 mm inner diameter - wall thickness as required - max length 8000 mm
140 profile - 140 mm inner diameter - wall thickness as required - max length 8000 mm

Characteristics / technical specifications

• Product: Carbon gennaker pole (CUL production)
• Manufacturer / brand: CUL-Masten
• Material: Carbon; optional reinforcement with Innegra or aramid for increased impact protection
• Use: Gennaker and Code 0 bowsprit applications
• Reinforcements: Partial reinforcements for fittings or waterstay possible
• Installation options: Boat-specific installation tubes; extendable telescopic versions available
• End fittings: Tailor-made, boat-specific end fittings
• Wall thicknesses and lengths: according to project requirements; other dimensions available on request
• Available profile sizes and maximum lengths: see profile sizes above
• Manufacturing location: Southern Germany (CUL-Masten production)
• Customization: Boat-specific special production in consultation with yacht designer, shipyard or boatbuilder
