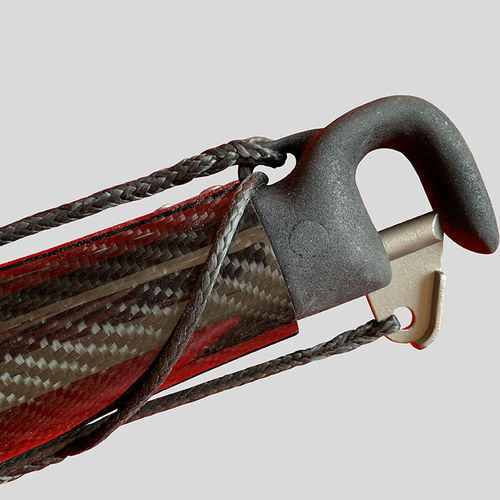

Sailing dinghy spinnaker pole

for yachtfor sailboatscarbon fiber

Overview
Modern carbon spinnaker poles for sailboats and yachts are part of the CUL-Masts product range. CUL spars feature tapered end pieces to simplify handling and reinforcement with state-of-the-art Innegra or Aramid fibers as impact protection. All products come from CUL-Masts own production.

Laminate structure and reinforcements
The spinnaker pole is frequently moved on deck and bears loads against the forestay on close reaches, so high breaking strain and impact resistance are essential. Ultra-modern Innegra fiber is used to meet these demands: lighter than carbon, tougher than aramid and non-absorbent. Innegra combined with carbon delivers a high-strength, low-weight laminate. In premium variants the fiber orientation is mainly longitudinal and a UV-resistant multi-layer coating is applied.

Fittings and lines
Tapered pole ends receive small, lightweight end fittings to ease handling. A practical solution for line handling is the Dyneema Hahnepot, which retracts when not in use and is supplied with spliced inlet rubber. Topnant and downhaul can be equipped with inlet rubber. Optional automatic fittings (Pfeifer EasyClick or Forespar) are available from Ø40 profiles.

Boat classes
Boat class | Form | Fitting on the mast | Fitting on the bow | Profile size | Total weight | Overall length
Korsar | straight | POM ball 40 mm | Pfeifer aluminum fitting | 27 profile | ca. 560 g | 1690 mm
FD | straight | POM ball 40 mm | Pfeifer aluminum fitting | 27 profile | ca. 880 g | 2500 mm
505er | straight | POM ball 40 mm | Pfeifer aluminum fitting | 27 profile | ca. 890 g | 2516 mm
Soling | straight | Pfeifer aluminum fitting | Pfeifer aluminum fitting | 35 profile | ca. 1240 g | 2615 mm
Tempest | straight | Pfeifer aluminum fitting | Pfeifer aluminum fitting | 35 profile | ca. 1220 g | 2565 mm
Lacustre | straight | Pfeifer aluminum fitting | Pfeifer aluminum fitting | 35 profile | ca. 1250 g | 2640 mm
International 5.5er | straight | Pfeifer aluminum fitting | Pfeifer aluminum fitting | 35 profile | ca. 1270 g | ca. 2700 mm (survey length!)
J24 | straight | Pfeifer aluminum fitting | Pfeifer aluminum fitting | 35 profile | ca. 1340 g | 2895 mm
45er National Cruiser | straight | Pfeifer aluminum fitting | Pfeifer aluminum fitting | 60 profile | ca. 2800 g | ca. 3200 mm (survey length!)
45er National Cruiser | tapered | Pfeifer aluminum fitting | Pfeifer aluminum fitting | 60 profile | ca. 2500 g | ca. 3200 mm (survey length!)

Profile sizes
Form | Profile size | Dimensions | Weight | Maximum pipe length
straight | 27 profile | Ø27x31 mm | ca. 280 g/m | 2600 mm
straight | 27 profile | Ø27x31.5 mm | ca. 320 g/m | 2600 mm
straight | 35 profile | Ø35x39 mm | ca. 360 g/m | 5000 mm
straight | 40 profile | Ø40x44 mm | ca. 410 g/m | 6100 mm
straight | 50 profile | Ø50x55 mm | ca. 640 g/m | 4700 mm
straight | 60 profile | Ø60x65 mm | ca. 760 g/m | 5800 mm
straight | 70 profile | Ø70x76 mm | ca. 1060 g/m | 5700 mm
straight | 80 profile | Ø80x86 mm | ca. 1210 g/m | 7000 mm
straight | 90 profile | Ø90x96 mm | ca. 1360 g/m | 5700 mm
straight | 100 profile | Ø100x106 mm | ca. 1500 g/m | 8000 mm
straight | 110 profile | Ø110x116 mm | ca. 1650 g/m | 8000 mm
straight | 125 profile | Ø125x131 mm | ca. 1870 g/m | 8000 mm
straight | 140 profile | Ø140x146 mm | ca. 2100 g/m | 8000 mm
tapered | 40 profile | Ø40x45 mm | ca. 510 g/m | 6400 mm
tapered | 60 profile | Ø60x65 mm | ca. 740 g/m | 6100 mm
tapered | 70 profile | Ø70x76 mm | ca. 1040 g/m | 6100 mm
tapered | 80 profile | Ø80x86 mm | ca. 1190 g/m | 7600 mm

Technical specifications

• Material: Carbon (primary) with optional Innegra or Aramid fiber reinforcements for impact protection.
• Premium product: Innegra fibers combined with carbon; fiber direction mainly longitudinal for high strength and low weight.
• Alternative: machine-wound standard spinnaker pole without taper, fiber orientation approx. 15°.
• Surface: UV-resistant multi-layer coating available.
• End fittings: small, light end fittings on tapered ends; options include Pfeifer aluminum fittings, POM ball 40 mm for some classes.
• Lines: Dyneema Hahnepot retractable solution with spliced inlet rubber; topnant and downhaul with inlet rubber.
• Weights indicated in tables: poles with fittings, without Hahnepot and lines.
• Optional fittings: Pfeifer EasyClick or Forespar automatic fittings (from 40 profile upwards).
• Custom designs, other wall thicknesses, dimensions and lengths available on request.
