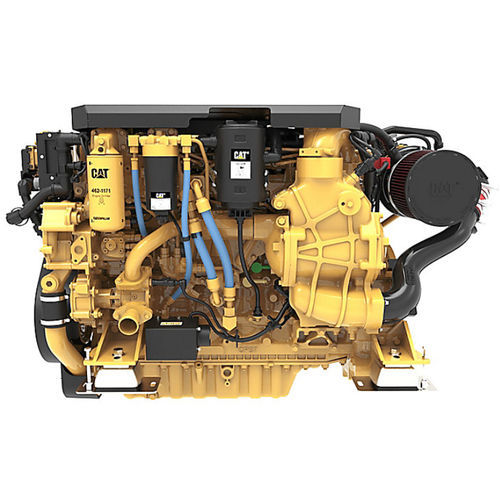

Inboard engine C7.1

propulsiondieselprofessional vessel

DIMENSIONS & WEIGHTS Length - 1095 mm Height - 891 mm Minimum Width - 798 mm Maximum Width - 850 mm Minimum Engine Dry Weight - 730 kg Maximum Engine Dry Weight - 760 kg ENGINE SPECIFICATIONS Configuration - In-line 6, 4-stroke-cycle diesel Emissions - U.S. EPA Tier 3 / IMO II emissions certified (commercial), RCD 2016 compliant, EU Stage IIIA compliant, CCNR Stage II through reciprocity with EU Stage IIIA Rated Engine Speed - 2300 - 2700 rpm Bore - 105 mm Stroke - 135 mm Displacement - 7.01 l Aspiration - Turbocharged-aftercooled aspiration Governor - Electronic (A5E2 V2 ECM) Refill Capacity - Lube Oil System w/Oil filter change: 20 L (5.3 gal) Oil Change Interval - 500 hrs Cooling - Heat exchanger or keel cooled Flywheel Housing - SAE No. 03 with SAE 11.5 in flywheel Rotation - Counterclockwise from flywheel end COOLING SYSTEM Gear driven jacket water pump Corrosion resistant sea water aftercooler Fuel cooler EXHAUST SYSTEM Watercooled turbocharger and exhaust manifold FUEL SYSTEM Common rail fuel system Electric fuel priming pump GENERAL Vibration damper and guard Self-tensioning multi-vee belt drive LUBE SYSTEM Closed crankcase ventilation system Integral engine oil cooler MOUNTING SYSTEM Front and rear engine mounting brackets STARTING SYSTEM Starter motors - 12V or 24V
