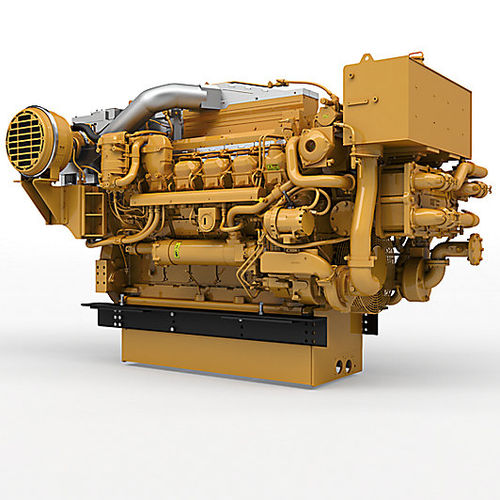

Propulsion engine 3512E
dieselprofessional vesselturbocharged

propulsion engine
propulsion engine
Add to favorites
Compare this product


Characteristics

Type
propulsion
Power source
diesel
Market
professional vessel
Technology
turbocharged, direct fuel injection
Other characteristics
IMO 3
Power

Min.: 1,341 ch (1,341 hp)

Max.: 2,549 ch (2,549 hp)

Description

The 3512E marine propulsion engine is now available in a wide range of ratings that meet U.S. EPA Tier 4 Final and IMO III marine emissions regulations. As the commercial marine industry adjusts their operations to meet U.S. EPA Tier 4 Final and IMO III emissions standards, Caterpillar Marine has introduced a solution built to maximize performance while meeting regulations. Caterpillar's combination of a fuel-efficiency-optimized engine and a selective catalytic reduction (SCR) aftertreatment system is a solution that not only reduces NOx emissions, but can also lower a customer's owning and operating costs in the process. POWER RATING Power Range - 1341-2549 bhp (1000-1901 bkW) ENGINE SPECIFICATIONS Speed Range - 1600-1800 rpm Emissions - U.S. EPA Tier 4 Final, IMO III Aspiration - TTA Bore - 170 mm Stroke - 215 mm Displacement - 58.6 l Rotation from Flywheel End - Counterclockwise Configuration - Vee 12, 4-Stroke-Cycle Diesel DIMENSIONS & WEIGHTS Minimum Dry Weight - 8176 kg Minimum Length - 2624 mm Maximum Length - 3184 mm Minimum Height - 2335 mm Maximum Height - 2335 mm Minimum Width - 1808 mm Maximum Width - 2081 mm AIR INLET SYSTEM Corrosion-resistant aftercooler core CONTROL SYSTEM Dual A5 engine control modules with electronic unit injection and low pressure fuel system EXHAUST SYSTEM Dual turbochargers with water-cooled bearings and heat shields GENERAL Vibration damper and guard Meets SOLAS regulations FUEL SYSTEM Duplex Fuel and Oil Filtration COOLING SYSTEM Auxiliary fresh water pump Gear Driven, centrifugal jacket water pump with 40% more capacity
