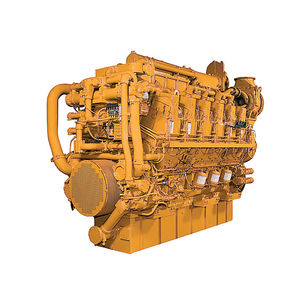

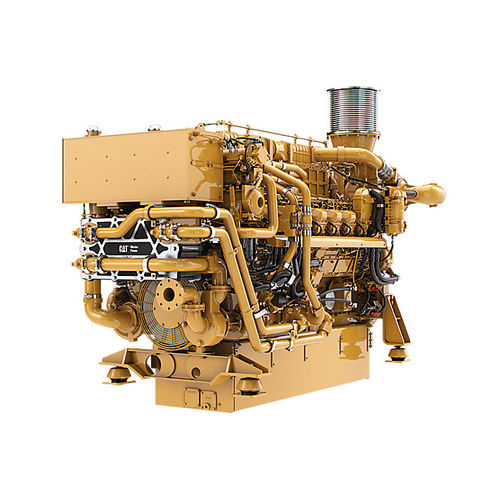

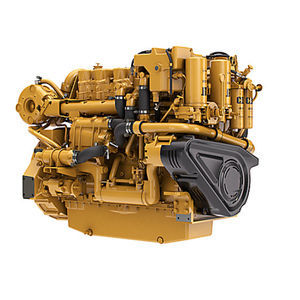

Auxiliary engine 3516E
dieselprofessional vesselturbocharged

auxiliary engine
auxiliary engine
Add to favorites
Compare this product


Characteristics

Type
auxiliary
Power source
diesel
Market
professional vessel
Technology
turbocharged, direct fuel injection
Other characteristics
IMO 3
Power

Min.: 787 ch (787 hp)

Max.: 3,175 ch (3,175 hp)

Description

The 3516E marine auxiliary engine is now available in a wide range of ratings that meet U.S. EPA Tier 4 Final and IMO III marine emissions regulations. As the commercial marine industry adjusts their operations to meet EPA Tier 4 Final and IMO III emissions standards, Caterpillar Marine has introduced a solution built to maximize performance while meeting regulations. Caterpillar's combination of a fuel-efficiency-optimized engine and a selective catalytic reduction (SCR) aftertreatment system is a solution that not only reduces NOx emissions, but can also lower a customer's owning and operating costs in the process. POWER RATING Power Range - 787-3175 bhp (587-2368 bkW) ENGINE SPECIFICATIONS Aspiration - TA Emissions - U.S. EPA Tier 4 Final, IMO III Stroke - 215 mm Displacement - 78 l Configuration - Vee 16, 4-Stroke-Cycle Diesel Bore - 170 mm Rotation from Flywheel End - Counterclockwise DIMENSIONS & WEIGHTS Minimum Width - 1850 mm Dry Weight - 10006 kg Height - 2309 mm Length - 3724 mm Maximum Width - 2230 mm
