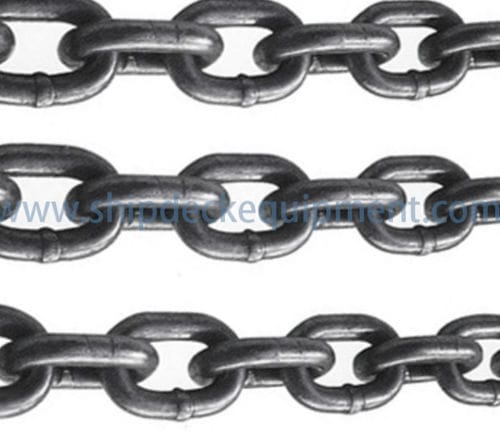

Ship chain DIN 764anchorshort-link
Add to favorites
Compare this product
Characteristics
- Application domain
- for ships
- Type
- anchor
- Mesh
- short-link
- Diameter
Max.: 26 mm
(1 in)Min.: 4 mm
(0.2 in)- Inner length
Max.: 91 mm
(4 in)Min.: 16 mm
(1 in)- Inner width
Max.: 35 mm
(1 in)Min.: 5 mm
(0 in)- Outer width
Max.: 94 mm
(4 in)Min.: 14 mm
(1 in)- Breaking load
Max.: 32,631 kg
(71,939 lb)Min.: 714 kg
(1,574 lb)
Description
Chain din 764 with German standard is a sort of round steel link chain for conveyors. The available steel grades are grade 2, grade 3, and grade 5. The chain is calibrated and tested. There are two types of tolerance: A tolerance class A, for use with chain wheels; B tolerance class B, for use with rollers. It should be noted that the din 764 chain should not intended for use as lifting chains or chain slings.The chain finises are black painted, galvanized or as your request.
Main Technical Specifications:
Type:Cranked Link Chain
Material:Alloy Steel, High Tensile, Heat Treated.
Surface Treatment:Zinc Plated, Black Painted, Hot Dip Galvanized, Powder Coated
Structure:Flash Butt Welded Chain
Feature:Heat Resistant
Color: Self Color, Red ,Green, or as to your request
Application: Ship,Iron And Steel Industry, Petroleum Chemical Industry, Coal Mine
