Furler / anti-pollution boom BL/45

Short description

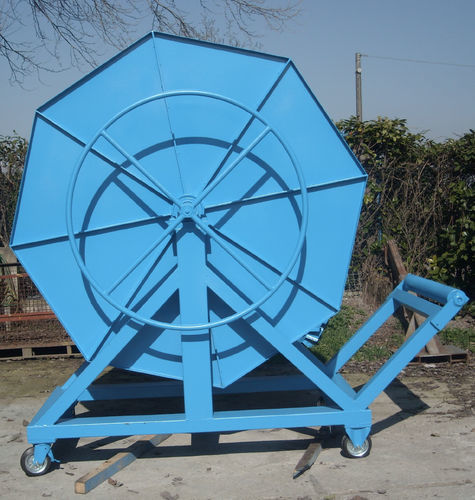

The assembled Zenit Ambiente winding reel is designed to store and deploy anti-pollution barrier BL/45 for marine operations. It occupies the maximum dimensions shown in the attached drawings without protrusions. The unit is provided with a base with forklift pockets and eyebolts welded on the uprights for crane lifting. Optional wheels can be fitted to facilitate ground handling. The reel includes corner reinforcing profiles, a safety locking device, water drainage support plates and a tail rope fastener.

Description
The reel is a horizontal-axis type with a drum diameter sized to hold up to 200 m of BL/45 barrier and consists of:

• Frame
• Roller coil (drum)
• Retaining walls (side bulkheads)
• Hydraulic gear motor

FRAME
The base frame is built from AISI 304/316 steel with 200×100 and 100×100 profiles, 5 mm thickness (alternative: Marine Aluminum). To withstand loads from the coil weight and towing operations, the supporting structure is reinforced with an additional central profile.

COIL
The winding coil comprises a central shaft (drum Ø 450 mm approx.), a pair of side bulkheads in AISI 316 stainless steel welded to eight equidistant AISI 304 spokes to complete the rotating drum. The peripheral ring of the sidewalls is AISI 316 tubular, 30 mm Ø and 2 mm thickness. The inner surface is convex toward the centre to facilitate barrier wrapping.

GALVANIZING & PAINTING

• Hot-dip galvanizing
• Anchoring primer
• Two coats of epoxy paint for marine environment (full-cycle epoxyvinyl)

OPTIONAL

• Guide to facilitate handling of the anti-pollution barrier
• Local control panel with IP55 protection
• Acoustic/light motion detector
• Entire construction in Marine Aluminum
• Possibility to insert motorization inside the coil axis

Additional information
BULKHEAD HEIGHT: 1500 mm approx.
TOTAL HEIGHT: 1800 mm approx.
DISTANCE BETWEEN BULKHEADS: 450 mm approx.
ELECTRIC MOTOR: 1.5 Kw
SUPPLY: 380V, 50 Hz – 1400 rpm
DOUBLE REDUCER: Worm gear reducer i=102
TOTAL REDUCTION RATIO: 1:418.2
OUTPUT SPEED: 3.35 rpm approx.

Specifications / technical data

• Capacity: up to 200 m of BL/45 barrier
• Type: horizontal-axis winding reel
• Drum diameter: approx. Ø 450 mm
• Frame material: AISI 304/316 steel (alternative: Marine Aluminum)
• Profiles: 200×100 and 100×100, thickness 5 mm
• Coil sidewalls: AISI 316 stainless steel with AISI 304 spokes
• Peripheral ring: AISI 316 tubular 30 mm Ø, 2 mm thickness
• Inner surface: convex toward centre to facilitate wrapping
• Drive: hydraulic gear motor (option to insert motorization inside coil axis)
• Electric motor (when present): 1.5 Kw
• Supply: 380V, 50 Hz – 1400 rpm
• Reducer: worm gear i=102, total reduction ratio 1:418.2
• Output speed: approx. 3.35 rpm
• Finishing: hot-dip galvanizing, anchoring primer, two coats epoxy for marine environment
• Handling features: base with forklift pockets, eyebolts for crane lifting, optional wheels
• Optional accessories: guide, local control panel IP55, acoustic/light detector, marine aluminum construction
