Furler / anti-pollution boom 7272

Short description

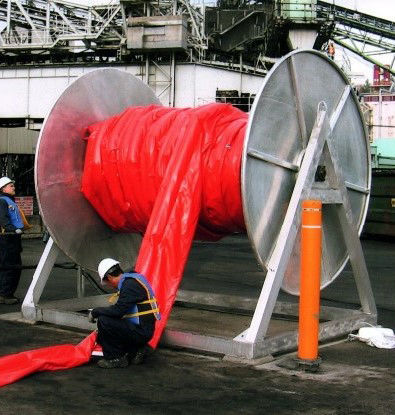

The Zenit Ambiente Boom Reel is used for storage, transportation and deployment of rolling barriers. The hydraulic gear enables the deployment and recovery of barriers for the containment of hydrocarbon or other polluting material without intensive manual labor.

Application guide
We recommend using the Zenit Ambiente Boom Reel for effective storage and deployment of a wide range of oil containment barriers. It can be mounted in docks, harbors, marinas or on ships and is easily transportable. It can operate through the ship’s power system or, if present, through the hydraulic system. Alternatively, it can be equipped with an auxiliary power unit (Powerpack). The Zenit Ambiente Boom Reel reduces the time and effort required to deploy and retrieve containment barriers.

Features and benefits

• Custom-built, available in a wide range of sizes.
• Marinized welded aluminium structure suitable for marine environments.
• High-capacity hydraulic gear system for reliable winding and payout.
• Controls (winding speed and direction, emergency bi-step) can be mounted on the coil or located on a separate power unit (Powerpack).
• Solid bottom flanges for safe handling during operations.
• Available with electric, diesel or gasoline power options.
• Convenient holes for forklift forks and lift rings to simplify transport and installation.

Additional information
TOTAL LENGTH: 2490 mm
WIDTH: 1830 mm
HEIGHT: 2240 mm
WEIGHT (EMPTY): 386 kg
COIL DIAMETER: 1830 mm
COIL LENGTH: 1830 mm

Caractéristiques / spécifications techniques

• Total length: 2490 mm
• Width: 1830 mm
• Height: 2240 mm
• Weight (empty): 386 kg
• Coil diameter: 1830 mm
• Coil length: 1830 mm
• Material: marinized welded aluminium structure
• Drive: high-capacity hydraulic gear system; optional electric, diesel or gasoline power; can be equipped with auxiliary power unit (Powerpack)
• Controls: winding speed and direction, emergency bi-step (mounted on coil or separate power unit)
• Handling features: solid bottom flanges, holes for forklift forks and lift rings
