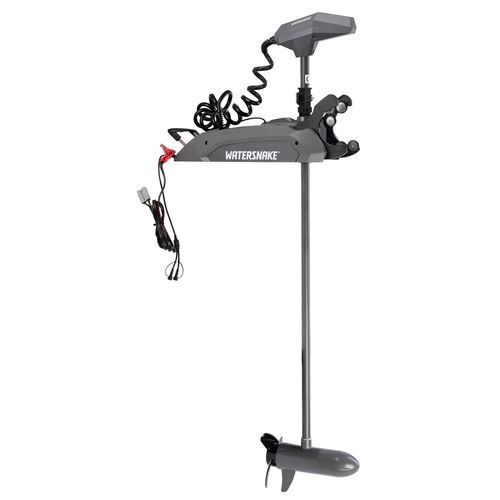

Propulsion engine Stealth X

bowelectricboating

Overview
The Watersnake Stealth X bow-mount trolling motor delivers precise positioning and dependable propulsion for serious anglers. With built-in Anchor Mode and wireless control, Stealth X holds your boat on a spot using satellite-based navigation while offering robust saltwater-ready construction.

Positioning & Navigation
Equipped with a tri-band GPS antenna (GPS, GLONASS, BeiDou) for improved satellite coverage, faster lock times and stable spot-lock (Anchor Mode) performance even in wind and current.

Hardware Upgrades

• Upgraded bow-mount bracket for smoother deployment and stowage.
• Reinforced gearing and a more robust drive system for faster, stronger turning and improved steering response.

Features

• Anchor Mode Hold — maintain position automatically using satellite-based location tracking.
• Optional Navigation Sensor — plug-in sensor available to improve responsiveness and heading accuracy (sold separately).
• Saltwater Ready — composite epoxy shaft, encapsulated driver module and sacrificial zinc anode for marine durability.
• Wireless Handheld Remote — included remote for speed and steering control from anywhere on the boat.
• LiFePO4 Battery Compatible — supports lightweight lithium power on 24V models.
• Anderson Plug Connections — marine-grade plug-and-play connectors for quick setup.
• Digital Speed Control — precise, smooth control in forward and reverse.
• Built-in Voltage Protection — internal protection circuitry eliminating the need for an external breaker in specified configurations.
• Weedless 3-Blade Propeller — designed to minimise drag in weed beds.
• Stainless Steel Propeller Shaft — corrosion-resistant for extended saltwater/freshwater use.
• Foot Controller Compatible — works with optional Gen 3 Foot Controller for hands-free operation (sold separately).

Model & Options
Example model shown: Stealth X 80 lb 78" (200 cm) — 24V. Selectable variants and accessory options available on the product page.

User manuals & Schematics
Instruction manual and parts/schematics documents for the Stealth X series are provided on the product page for installation and servicing.

Technical specifications

• Brand: Watersnake
• Model / Series: Stealth X
• Type: Bow-mount trolling motor (electric)
• Thrust: 80 lb
• Voltage: 24 V
• Shaft: 78" (200 cm) epoxy composite shaft
• GPS: Tri-band antenna (GPS, GLONASS, BeiDou)
• Mounting: Bow mount bracket (upgraded)
• Remote: Wireless handheld remote included; optional foot controller compatibility (sold separately)
• Propeller: Weedless 3-blade, fibre-reinforced
• Propeller shaft: Stainless steel
• Connections: Anderson plug marine-grade connectors
• Battery compatibility: LiFePO4 supported (24V models); suggested minimum battery size: 100 Ah or larger
• Protection: Built-in voltage protection (internal protection circuitry)
