Overview

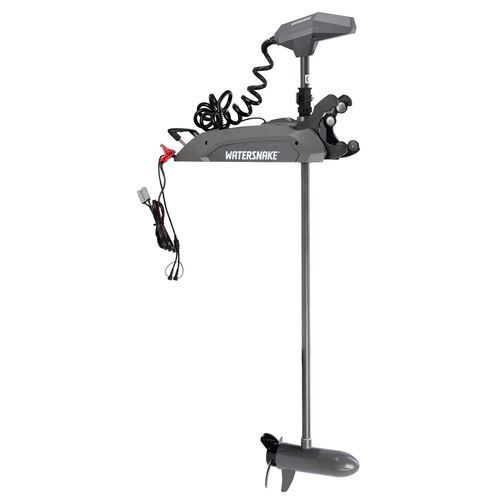

The Watersnake Stealth GPS series is a bow-mount GPS trolling motor delivering integrated navigation and precision station-keeping for anglers and boat operators. Designed for saltwater use with advanced intelligent modes, it simplifies trolling, route following and spot-lock operations while reducing operator workload.

Navigation & Positioning
Equipped with a high-performance tri-band GNSS antenna (GPS, GLONASS, BeiDou) for improved satellite coverage, faster fix acquisition and enhanced spot-lock performance in wind and current.

Hardware Upgrades

• Upgraded bow-mount bracket for smoother deployment and stowage
• Reinforced gearing and a more robust drive system for stronger, faster turning

Key Features

• Anchor Mode (Hold) — Satellite-based position hold (spot-lock) at the push of a button
• Cruise Mode — Maintain consistent ground speed for trolling and coverage
• Track Recording — Record and automatically retrace routes
• Navigate Mode — Auto-travel to route start/end and follow the recorded track hands-free
• Optional Navigation Sensor — Plug-in sensor available to improve responsiveness and heading accuracy (sold separately)
• Saltwater Ready — Composite shaft, encapsulated driver module and sacrificial zinc anode
• Wireless Handheld Remote — Included digital remote fob for speed and steering control
• LiFePO4 Battery Compatible — Supports 12V LiFePO4 up to 14.5V in use
• Anderson Plug Connections — Marine-grade plug-and-play connectors
• Digital Speed Control — Precise and smooth forward/reverse control
• Built-in Voltage Protection — Internal protection allowing safe operation up to 14.5V without external breaker
• Weedless 3-Blade Propeller — Reduced drag in vegetation
• Stainless Steel Propeller Shaft — Corrosion-resistant shaft for extended use
• Foot Controller Compatible — Works with optional Gen 3 Foot Controller (sold separately)

Specifications Table (two model variants)
MODEL | Stealth GPS 65/66 | Stealth GPS 65/54
CODE | 55329 | 55327
THRUST | 65 lb | 65 lb
VOLTS | 12 V | 12 V
AMP DRAW | 0–40 A | 0–40 A
WATTS (MAX) | 350 W | 350 W
SPEEDS | Variable | Variable
MAX PROP RPM | 1400 rpm | 1400 rpm
MOTOR WEIGHT | 19 kg | 18.5 kg
SHAFT | 66 in (167 cm) | 54 in (137 cm)
SHAFT DIAMETER | 1.2 in (30 mm) | 1.2 in (30 mm)
SHAFT WALL THICKNESS | 5 mm | 5 mm
STEERING | GPS, Remote control fob | GPS, Remote control fob
PROP | Fibre-reinforced nylon 3-blade (94 mm pitch) | Fibre-reinforced nylon 3-blade (94 mm pitch)
REMOTE CONTROL | Digital fob | Digital fob
MOUNTING | Bow mount bracket | Bow mount bracket
VOLTAGE PROTECTION | Protected up to 14.5 V (no external breaker required) | Protected up to 14.5 V (no external breaker required)
BATTERY REQUIRED | 12V deep-cycle or 12V LiFePO4 up to 14.5V in use | 12V deep-cycle or 12V LiFePO4 up to 14.5V in use
SUGGESTED MIN. BATTERY SIZE | 100 Ah or larger | 100 Ah or larger
SUGGESTED MAX. BOAT WEIGHT | Up to 1200 kg | Up to 1200 kg
FOOT CONTROL COMPATIBILITY | Yes (optional) | Yes (optional)
NAV SENSOR COMPATIBILITY | Yes (optional) | Yes (optional)
GPS CAPABILITY | Full GPS | Full GPS

Technical Specifications

• Brand: Watersnake
• Model family: Stealth GPS
• Available shaft lengths: 66 in (167 cm) and 54 in (137 cm)
• Thrust: 65 lb
• Voltage: 12 V (protected up to 14.5 V)
• Max power: 350 W
• Amp draw: 0–40 A
• Max propeller speed: 1400 rpm
• Motor weight: ~18.5–19 kg depending on shaft length
• Shaft diameter: 1.2 in (30 mm); wall thickness 5 mm
• Propeller: Fibre-reinforced nylon 3-blade (94 mm pitch), weedless design
• Steering: GPS-based with wireless remote control fob
• Controls: Wireless handheld remote included; optional foot controller and navigation sensor supported
• Battery compatibility: 12V deep-cycle or 12V LiFePO4; suggested minimum 100 Ah
• Mounting: Bow mount bracket
