bow thruster / for ships / electric / tunnel type
Veth

Add to MyNauticExpo favorites
Compare this product
bow thruster / for ships / electric / tunnel type bow thruster / for ships / electric / tunnel type - Veth
{{requestButtons}}

Characteristics

  • Type:

    bow

  • Application domain:

    for ships

  • Power source:

    electric

  • Other characteristics:

    tunnel type

  • Power:

    Max.: 1,800 kW (2,447.3 hp)

    Min.: 65 kW (88.4 hp)

Description

Your ship design as a basis
Your ship design serves as the basis for the Veth tunnel bow thruster. Veth Propulsion will collaborate with your designer for the construction to fit into your front structure of your vessel.

Advantages of the tunnel bow thruster

Optimal thrust
Your ship design serves as the basis
Optimum efficiency and minimal cavitation through streamlined tailpiece

Special version
A conventional tunnel bow thruster is sufficient for mooring in harbours. But what if you need a 360 degree steerable thruster with great power in deep waters, e.g. for your DP system or as an emergency propulsion? The retractable tunnel bow thruster is the ideal solution for you.

The retractable tunnel is a special version of the Veth tunnel bow thruster. The retractable tunnel serves in the upper position as a BB-SB propeller and in the lower position as a 360 degree steerable rudder propeller. Want to know more?

Operation

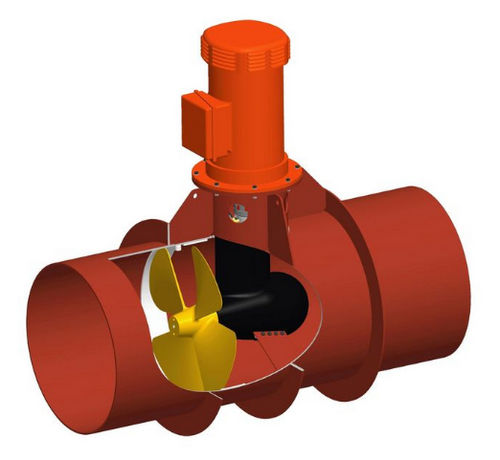

A streamlined angular gear drive with a propeller is mounted in the tunnel. At the top of the tunnel an electric or hydraulic motor is mounted, which drives the rotation in 2 turning directions (Port and Starboard). When the tunnel bow thruster is driven by a diesel engine, an angular gear drive with a reverse clutch is used.
