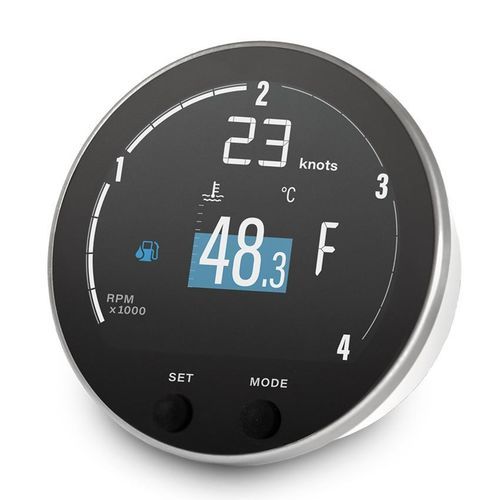

Satellite multi-purpose instrument VMH 35-D

GPSspeed displayfor boat

Overview
The VMH 35-D GPS is a compact multifunction display built as a standalone instrument for monitoring diesel engines and vessel parameters. It integrates a high-performance GPS receiver for speed, position and heading and supports 12V and 24V electrical systems. EasyLink output enables expansion of the helm with additional VMH satellite displays.

Product details

• Series: VMH
• Function: Multifunction display
• Nominal voltage: 12V, 24V
• Bezel color: Brushed stainless steel
• Screen dimension: 83 mm
• Connectivity: NMEA 2000, EasyLink, SAE J1939

Highlights

• Operates on 12 / 24 V systems
• SAE J1939 CAN port for engine data
• Embedded high-performance GPS
• Displays more than 30 data parameters
• 4 analog inputs for external sensors
• EasyLink output for up to 16 VMH 14 satellite displays
• Analog/CAN to NMEA 2000 gateway

All features

• Analog inputs: 2x resistive / 2x frequency
• Digital inputs: 1x SAE J1939 / 1x NMEA 2000
• Nominal voltage: 12V / 24V
• Operating voltage: 9 - 32 V
• Current consumption: ≤ 150 mA (normal mode)
• Protection class: IP X7
• Dimensions: 100 mm (outer) / 85 mm (mounting hole)
• Front ring: Brushed stainless steel
• Front lens: Mineral glass
• Display: Color IBN + 1.44" TFT optically bonded
• Connectors: Molex MX-150 12 pins / DeviceNet M12 5 pins
• NMEA 2000 certified with embedded analog gateway

Product description (detailed)
The VMH 35-D is a standalone solution for diesel engine monitoring on boats and work vessels. It offers configurable tachometer scales (3000 or 4000 RPM) and displays extensive engine, battery, tank and GPS information. Engine‑related alarms are available via SAE J1939 or local menu settings. The embedded NMEA 2000 gateway shares sensor inputs (fuel, trim, tachometer) with other instruments, removing the need for an external converter. A modern microprocessor ensures fast response and low power consumption even at full brightness.

Technical specifications

• Model / Series: VMH 35-D
• Operating voltage: 9 - 32 V (nominal 12V / 24V)
• Current consumption: ≤ 150 mA (normal mode); approx. 170 mA at full brightness
• Protection class: IP X7
• Dimensions: 100 mm outer diameter; 85 mm mounting hole
• Screen dimension: 83 mm; Display: Color IBN + 1.44" TFT, optically bonded, sun-readable hybrid display
• Front lens: Mineral glass; Front bezel: Brushed stainless steel
• Analog inputs: 2x resistive, 2x frequency (4 analog inputs for external sensors)
• Digital inputs / ports: SAE J1939 CAN port; NMEA 2000; EasyLink
• Connectivity features: Embedded high-performance GPS; Analog/CAN to NMEA 2000 gateway; EasyLink output for up to 16 VMH 14 satellite displays
• Data: Displays more than 30 parameters (engine, battery, tank, GPS, etc.)
• Connectors: Molex MX-150 12 pins and DeviceNet M12 5 pins
• Certifications: NMEA 2000 certified (embedded analog gateway)
