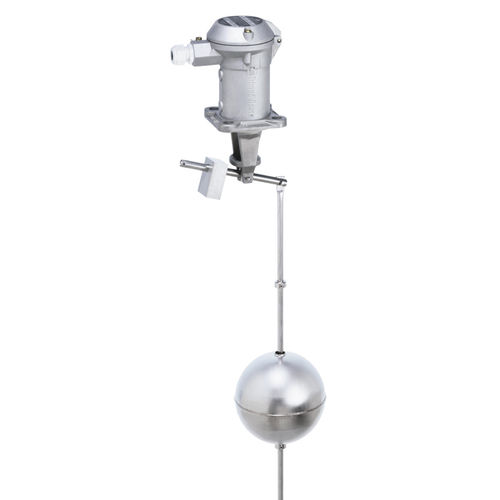

Float level switch A 01 14 series
for boatspumpfor tanks

float level switch
float level switch
Add to favorites
Compare this product


Characteristics

Technology
float
Application domain
for boats
Applications
pump, for tanks

Description

Function: 2-point control (pump) or 1 switching point (alarm) Nominal pressure: PN 16 according to DIN Operating temperature: 0 to 300°C Ambient temperature: 0 to 70°C Density of the liquid: > pump control min. 0.45 kg/dm³ > Alarm min. 0.30 kg/dm³ Switching differential: A 01 140: 12 to 1340 mm A 01 141: 12 to 2840 mm Material wet side: stainless steel (CrNiMo) Housing material: Seawater-resistant die-cast aluminium Flange: square 92 x 92 mm, bolt circle 92 mm Switching element: Microswitch, change-over contact (SPDT) with silver contacts Switching capacity: 250 VAC, 5 A / 30 VDC, 5 A Protection class: IP65 Safety Integrity Level (SIL): SIL 1 (Types AA 01 140 - AA 01 141: SIL 2)
